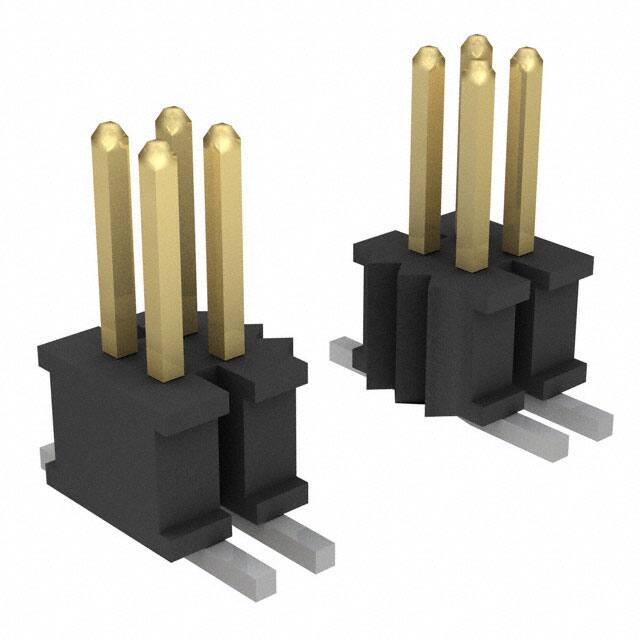

FTSH-109-04-L-DV Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 18POS 1.27MM
Contact Length - Mating: 0.150" (3.81mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.099" (2.51mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 18
Mounting Type: Surface Mount
Current Rating (Amps): 3.4A per Contact
Connector Type: Header, Cuttable
Packaging: Tube
| Кількість | Ціна |
|---|---|
| 2+ | 249.77 грн |
| 50+ | 208.39 грн |
| 100+ | 178.93 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-109-04-L-DV Samtec Inc.
Description: CONN HEADER SMD 18POS 1.27MM, Contact Length - Mating: 0.150" (3.81mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Unshrouded, Insulation Height: 0.099" (2.51mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 18, Mounting Type: Surface Mount, Current Rating (Amps): 3.4A per Contact, Connector Type: Header, Cuttable, Packaging: Tube.
Інші пропозиції FTSH-109-04-L-DV за ціною від 162.81 грн до 319.05 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FTSH-109-04-L-DV | Samtec |
Headers & Wire Housings High Reliability Header Strips, .050" pitch |
на замовлення 102 шт: термін постачання 21-30 дні (днів) |
|
| FTSH-109-04-L-DV |
|
Виробник: Samtec
Headers & Wire Housings High Reliability Header Strips, .050" pitch
Headers & Wire Housings High Reliability Header Strips, .050" pitch
на замовлення 102 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 319.05 грн |
| 51+ | 256.13 грн |
| 102+ | 189.60 грн |
| 510+ | 168.45 грн |
| 1020+ | 162.81 грн |
