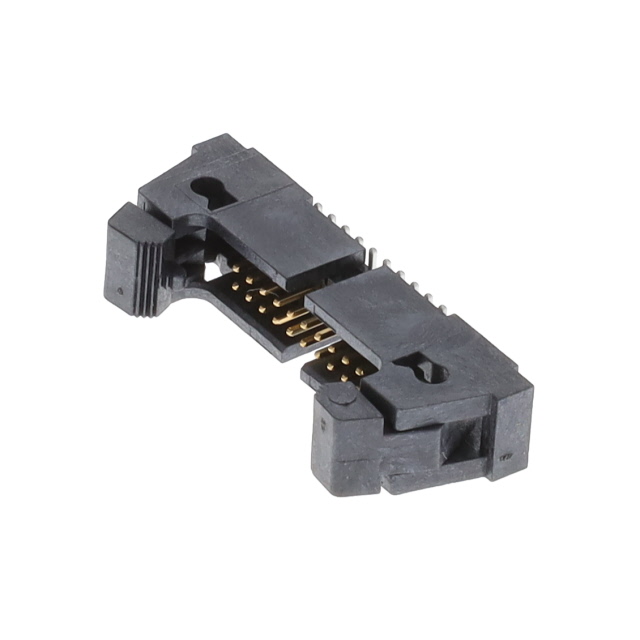

FTSH-110-01-F-DV-EJ-P-TR Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 20POS 1.27MM
Connector Type: Header, Cuttable
Features: End Shrouds, Pick and Place
Packaging: Tape & Reel (TR)
Contact Length - Mating: 0.120" (3.05mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded
Insulation Height: 0.099" (2.51mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Latch Lock/Eject Hooks
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 20
Mounting Type: Surface Mount
Current Rating (Amps): 3.4A per Contact
| Кількість | Ціна |
|---|---|
| 175+ | 242.37 грн |
| 525+ | 199.27 грн |
| 1225+ | 168.97 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-110-01-F-DV-EJ-P-TR Samtec Inc.
Description: CONN HEADER SMD 20POS 1.27MM, Connector Type: Header, Cuttable, Features: End Shrouds, Pick and Place, Packaging: Tape & Reel (TR), Contact Length - Mating: 0.120" (3.05mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded, Insulation Height: 0.099" (2.51mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Latch Lock/Eject Hooks, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 20, Mounting Type: Surface Mount, Current Rating (Amps): 3.4A per Contact.
Інші пропозиції FTSH-110-01-F-DV-EJ-P-TR за ціною від 179.06 грн до 292.36 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FTSH-110-01-F-DV-EJ-P-TR | Виробник : Samtec Inc. |
Description: CONN HEADER SMD 20POS 1.27MM Contact Length - Mating: 0.120" (3.05mm) Row Spacing - Mating: 0.050" (1.27mm) Insulation Material: Liquid Crystal Polymer (LCP) Shrouding: Shrouded Insulation Height: 0.099" (2.51mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Tin Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Mating: Gold Pitch - Mating: 0.050" (1.27mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Latch Lock/Eject Hooks Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 20 Mounting Type: Surface Mount Current Rating (Amps): 3.4A per Contact Connector Type: Header, Cuttable Features: End Shrouds, Pick and Place Packaging: Cut Tape (CT) |
на замовлення 2405 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
| FTSH-110-01-F-DV-EJ-P-TR | Виробник : Samtec |
Headers & Wire Housings High Reliability Header Strips |
на замовлення 161 шт: термін постачання 21-30 дні (днів) |
|
