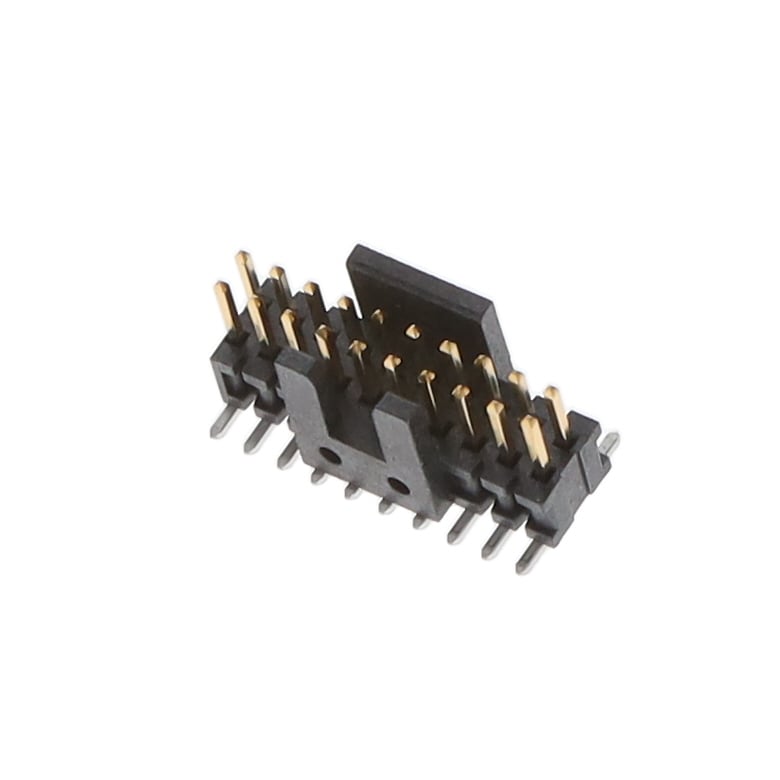

FTSH-110-01-F-DV-K-A Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER SMD 20POS 1.27MM
Features: Board Guide, Keying Shroud
Packaging: Tube
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 175 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 244.31 грн |
| 100+ | 184.85 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-110-01-F-DV-K-A Samtec Inc.
Description: CONN HEADER SMD 20POS 1.27MM, Features: Board Guide, Keying Shroud, Packaging: Tube, Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-110-01-F-DV-K-A за ціною від 117.71 грн до 335.89 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FTSH-110-01-F-DV-K-A | Виробник : Samtec |
Headers & Wire Housings High Reliability Header Strips, .050" pitch |
на замовлення 2622 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
FTSH-110-01-F-DV-K-A | Виробник : SAMTEC |
Description: SAMTEC - FTSH-110-01-F-DV-K-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e) tariffCode: 85366930 productTraceability: No rohsCompliant: Y-EX Rastermaß: 1.27mm Anzahl der Kontakte: 20Contacts euEccn: NLR Anzahl der Reihen: 2Rows hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 |
на замовлення 13 шт: термін постачання 21-31 дні (днів) |
|
