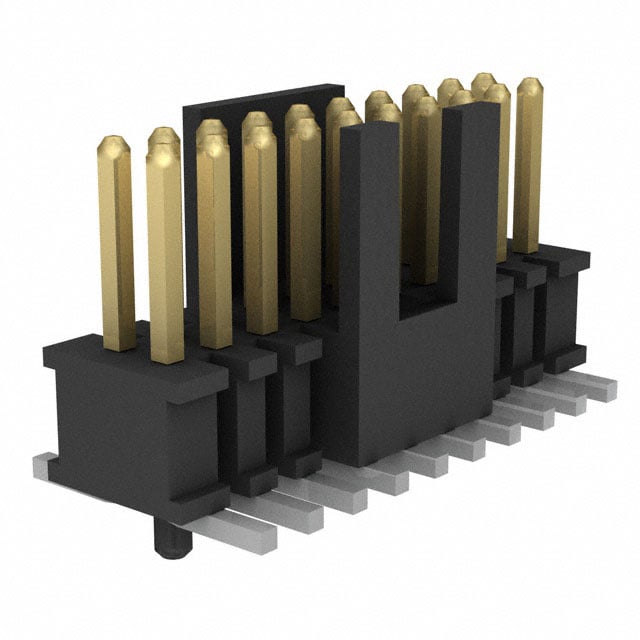

FTSH-110-01-L-DV-K-A-P-TR SAMTEC
Виробник: SAMTEC
Category: Board-to-board connectors
Description: Connector: pin strips; socket; male; PIN: 20; vertical; SMT; 1.27mm
Kind of package: reel
Type of connector: pin strips
Connector variant: pick and place
Kind of connector: male
Electrical mounting: SMT
Connector: socket
Spatial orientation: vertical
Contact plating: gold-plated
Contacts pitch: 1.27mm
Number of pins: 20
Connector pinout layout: 2x10
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 255.08 грн |
| 10+ | 215.40 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
14-30 дні (днів)
Мінімальна партія:
2 шт
Відгуки про товар
Написати відгук
Технічний опис FTSH-110-01-L-DV-K-A-P-TR SAMTEC
Description: CONN HEADER SMD 20POS 1.27MM, Features: Board Guide, Keying Shroud, Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-110-01-L-DV-K-A-P-TR за ціною від 124.58 грн до 376.33 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FTSH-110-01-L-DV-K-A-P-TR | Samtec Inc. |
Description: CONN HEADER SMD 20POS 1.27MM Features: Board Guide, Keying Shroud, Pick and Place Packaging: Tape & Reel (TR) Connector Type: Header, Cuttable Current Rating (Amps): 3.4A per Contact Mounting Type: Surface Mount Number of Positions: 20 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.099" (2.51mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 8000 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
FTSH-110-01-L-DV-K-A-P-TR | Samtec |
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 10400 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
|
|
FTSH-110-01-L-DV-K-A-P-TR | Samtec Inc. |
Description: CONN HEADER SMD 20POS 1.27MM Features: Board Guide, Keying Shroud, Pick and Place Packaging: Cut Tape (CT) Connector Type: Header, Cuttable Current Rating (Amps): 3.4A per Contact Mounting Type: Surface Mount Number of Positions: 20 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.099" (2.51mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 8545 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
|
|
FTSH-110-01-L-DV-K-A-P-TR | Samtec |
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 3 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
|
|
FTSH-110-01-L-DV-K-A-P-TR | Samtec |
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 390 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
FTSH-110-01-L-DV-K-A-P-TR | Samtec |
Headers & Wire Housings High Reliability Header Strips |
на замовлення 1284 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. | ||||||||||
 |
FTSH-110-01-L-DV-K-A-P-TR | SAMTEC |
Description: SAMTEC - FTSH-110-01-L-DV-K-A-P-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e) Kontaktüberzug: Vergoldete Kontakte Kontaktanschluss: Oberflächenmontage, gerade Rastermaß: 1.27 Anzahl der Kontakte: 20 Steckverbindersysteme: Board-to-Board, Wire-to-Board Anzahl der Reihen: 2 Kontaktmaterial: Phosphorbronze Steckverbinderkragen: Ohne Kragen Produktpalette: FTSH SVHC: Lead (17-Jan-2022) |
на замовлення 1 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. | ||||||||||
|
|
FTSH-110-01-L-DV-K-A-P-TR | Samtec |
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 3 шт: термін постачання 21-31 дні (днів) |
Мінімальне замовлення: 2 шт В кошику од. на суму грн. |
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: Samtec Inc.
Description: CONN HEADER SMD 20POS 1.27MM
Features: Board Guide, Keying Shroud, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 20POS 1.27MM
Features: Board Guide, Keying Shroud, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 8000 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 400+ | 171.14 грн |
| 1200+ | 139.11 грн |
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 10400 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 400+ | 245.84 грн |
| 1200+ | 202.18 грн |
| 2800+ | 182.25 грн |
| 5200+ | 157.43 грн |
| 10000+ | 124.58 грн |
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: Samtec Inc.
Description: CONN HEADER SMD 20POS 1.27MM
Features: Board Guide, Keying Shroud, Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 20POS 1.27MM
Features: Board Guide, Keying Shroud, Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 8545 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 273.82 грн |
| 10+ | 223.79 грн |
| 100+ | 190.18 грн |
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 3 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 373.23 грн |
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 390 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 38+ | 376.33 грн |
| 52+ | 275.83 грн |
| 250+ | 268.01 грн |
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: Samtec
Headers & Wire Housings High Reliability Header Strips
Headers & Wire Housings High Reliability Header Strips
на замовлення 1284 шт:
термін постачання 21-30 дні (днів)
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: SAMTEC
Description: SAMTEC - FTSH-110-01-L-DV-K-A-P-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e)
Kontaktüberzug: Vergoldete Kontakte
Kontaktanschluss: Oberflächenmontage, gerade
Rastermaß: 1.27
Anzahl der Kontakte: 20
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Anzahl der Reihen: 2
Kontaktmaterial: Phosphorbronze
Steckverbinderkragen: Ohne Kragen
Produktpalette: FTSH
SVHC: Lead (17-Jan-2022)
Description: SAMTEC - FTSH-110-01-L-DV-K-A-P-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e)
Kontaktüberzug: Vergoldete Kontakte
Kontaktanschluss: Oberflächenmontage, gerade
Rastermaß: 1.27
Anzahl der Kontakte: 20
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Anzahl der Reihen: 2
Kontaktmaterial: Phosphorbronze
Steckverbinderkragen: Ohne Kragen
Produktpalette: FTSH
SVHC: Lead (17-Jan-2022)
на замовлення 1 шт:
термін постачання 21-31 дні (днів)
| FTSH-110-01-L-DV-K-A-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 3 шт:
термін постачання 21-31 дні (днів)
