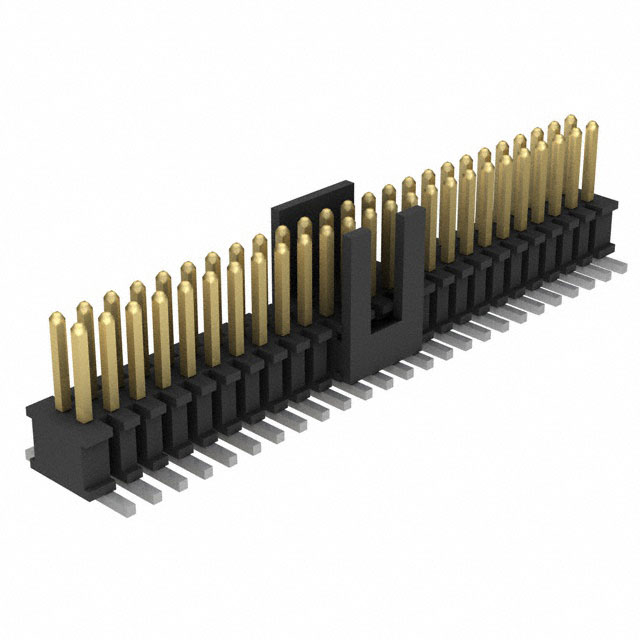

FTSH-125-01-F-DV-K Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 50POS 1.27MM
Features: Keying Shroud
Packaging: Tube
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 422.49 грн |
| 10+ | 394.13 грн |
| 25+ | 381.47 грн |
| 50+ | 333.29 грн |
| 100+ | 275.22 грн |
| 500+ | 229.61 грн |
| 1000+ | 182.72 грн |
| 2000+ | 140.09 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-125-01-F-DV-K Samtec Inc.
Description: CONN HEADER SMD 50POS 1.27MM, Features: Keying Shroud, Packaging: Tube, Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Number of Positions: 50, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-125-01-F-DV-K за ціною від 489.50 грн до 489.50 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||
|---|---|---|---|---|---|---|---|
 |
FTSH-125-01-F-DV-K-P-TR | SAMTEC |
Category: Board-to-board connectors Description: Connector: pin strips; socket; male; PIN: 50; vertical; SMT; 1.27mm Contact plating: gold flash Electrical mounting: SMT Connector pinout layout: 2x25 Type of connector: pin strips Kind of package: reel Kind of connector: male Connector: socket Spatial orientation: vertical Connector variant: pick and place Contacts pitch: 1.27mm Number of pins: 50 |
на замовлення 2 шт: термін постачання 14-30 дні (днів) |
|
||
 |
FTSH-125-01-F-DV-K | Samtec |
Headers & Wire Housings High Reliability Header Strips |
на замовлення 151 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| FTSH-125-01-F-DV-K-P-TR |
|
Виробник: SAMTEC
Category: Board-to-board connectors
Description: Connector: pin strips; socket; male; PIN: 50; vertical; SMT; 1.27mm
Contact plating: gold flash
Electrical mounting: SMT
Connector pinout layout: 2x25
Type of connector: pin strips
Kind of package: reel
Kind of connector: male
Connector: socket
Spatial orientation: vertical
Connector variant: pick and place
Contacts pitch: 1.27mm
Number of pins: 50
Category: Board-to-board connectors
Description: Connector: pin strips; socket; male; PIN: 50; vertical; SMT; 1.27mm
Contact plating: gold flash
Electrical mounting: SMT
Connector pinout layout: 2x25
Type of connector: pin strips
Kind of package: reel
Kind of connector: male
Connector: socket
Spatial orientation: vertical
Connector variant: pick and place
Contacts pitch: 1.27mm
Number of pins: 50
на замовлення 2 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 489.50 грн |
| FTSH-125-01-F-DV-K |
|
Виробник: Samtec
Headers & Wire Housings High Reliability Header Strips
Headers & Wire Housings High Reliability Header Strips
на замовлення 151 шт:
термін постачання 21-30 дні (днів)
