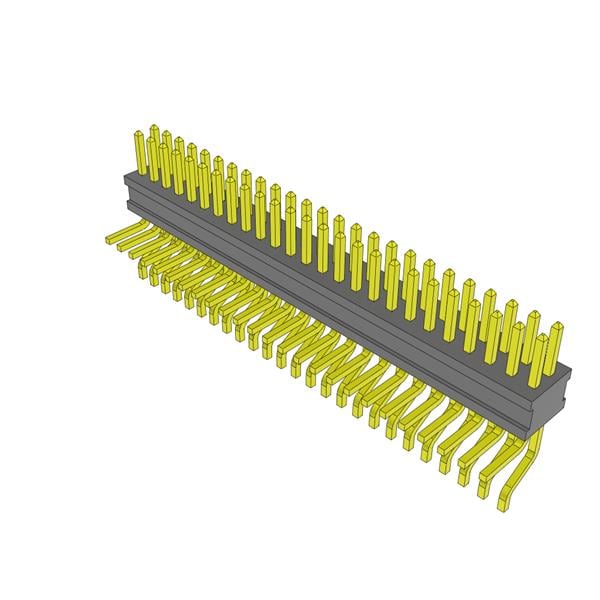

Технічний опис FTSH-125-01-H-MT Samtec
Description: HIGH RELIABILITY HEADER STRIPS,, Packaging: Tube, Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Right Angle; Through Hole, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Gold, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.135" (3.43mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-125-01-H-MT за ціною від 745.38 грн до 891.31 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||
|---|---|---|---|---|---|---|---|---|---|
| FTSH-125-01-H-MT | SAMTEC |
 Category: Board-to-board connectorsDescription: Connector: pin strips; male; soldering; on PCBs; 1.27mm; UL94V-0 Contact plating: gold-plated Operating temperature: -55...125°C Mechanical mounting: on PCBs Electrical mounting: soldering Type of connector: pin strips Kind of connector: male Lead length: 2.29mm Flammability rating: UL94V-0 Contacts pitch: 1.27mm |
на замовлення 44 шт: термін постачання 14-30 дні (днів) |
|
| FTSH-125-01-H-MT |
|
Виробник: SAMTEC
Category: Board-to-board connectors
Description: Connector: pin strips; male; soldering; on PCBs; 1.27mm; UL94V-0
Contact plating: gold-plated
Operating temperature: -55...125°C
Mechanical mounting: on PCBs
Electrical mounting: soldering
Type of connector: pin strips
Kind of connector: male
Lead length: 2.29mm
Flammability rating: UL94V-0
Contacts pitch: 1.27mm
Category: Board-to-board connectors
Description: Connector: pin strips; male; soldering; on PCBs; 1.27mm; UL94V-0
Contact plating: gold-plated
Operating temperature: -55...125°C
Mechanical mounting: on PCBs
Electrical mounting: soldering
Type of connector: pin strips
Kind of connector: male
Lead length: 2.29mm
Flammability rating: UL94V-0
Contacts pitch: 1.27mm
на замовлення 44 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 8+ | 891.31 грн |
| 40+ | 745.38 грн |
