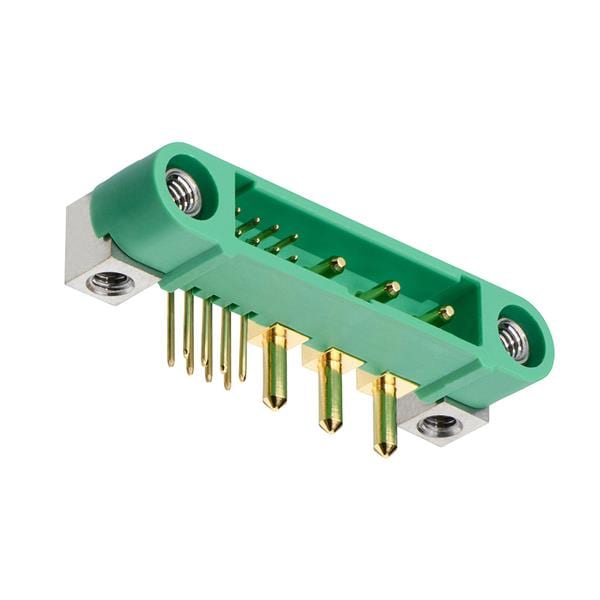

G125-MH108M4-03AD000P Harwin Inc.

Description: HDR MALE R/A 3PWR + 8SIGNAL, Row Spacing - Mating: 0.049" (1.25mm), Insulation Material: Polyamide (PA4T), Nylon 4T, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.208" (5.30mm), Contact Length - Post: 0.130" (3.30mm), Contact Shape: Circular, Part Status: Active, Contact Finish - Post: Gold, Contact Finish - Mating: Gold, Pitch - Mating: 0.049" (1.25mm), Insulation Color: Green, Contact Material: Beryllium Copper, Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Screw Lock, Contact Type: Male Pin, Operating Temperature: -65°C ~ 150°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 11 (8 + 3 Power), Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 2A, 10A, Connector Type: Header, Features: Mating Flange, Mounting Flange, Polarizing Key, Packaging: Strip.
