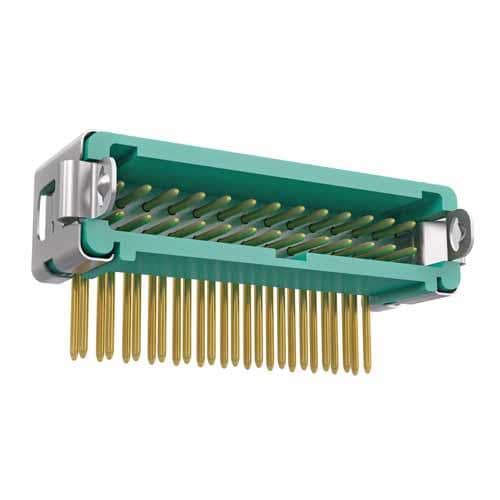

G125-MH12605L3P Harwin Inc.
Виробник: Harwin Inc.Description: CONN HEADER R/A 26POS 1.25MM
Features: Solder Retention
Packaging: Strip
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
на замовлення 355 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1349.01 грн |
| 10+ | 1103.80 грн |
| 100+ | 938.25 грн |
Відгуки про товар
Написати відгук
Технічний опис G125-MH12605L3P Harwin Inc.
Description: CONN HEADER R/A 26POS 1.25MM, Features: Solder Retention, Packaging: Strip, Connector Type: Header, Voltage Rating: 250V, Current Rating (Amps): 2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 26, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 150°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Green, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.219" (5.56mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free, Row Spacing - Mating: 0.049" (1.25mm).
Інші пропозиції G125-MH12605L3P за ціною від 957.96 грн до 1459.34 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G125-MH12605L3P | Виробник : Harwin |
Headers & Wire Housings Male,Horz,3.3mm,26P SMT Hld dwn/lock lat |
на замовлення 208 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
| G125-MH12605L3P | Виробник : HARWIN |
Category: Raster signal connectors 1,25mm Description: Connector: wire-wire/PCB; socket; male; PIN: 26; Gecko Latch; 2A Electrical mounting: THT Manufacturer series: Gecko Latch Kind of connector: male Mechanical mounting: on PCBs Contact plating: gold-plated Locking system: latch Connector: socket Flammability rating: UL94V-0 Contacts pitch: 1.25mm Current rating: 2A Number of pins: 26 Connector pinout layout: 2x13 Type of connector: wire-wire/PCB Body material: nylon Kind of package: reel |
товару немає в наявності |
