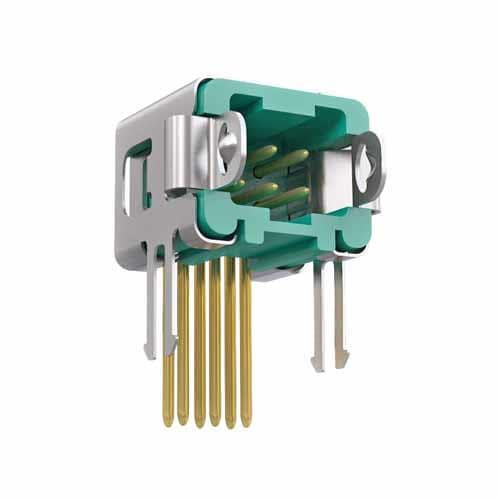

G125-MH20605L2P Harwin Inc.
Виробник: Harwin Inc.
Description: CONN HDR R/A 6POS
Packaging: Strip
Connector Type: Header
Voltage Rating: 450VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.189" (4.80mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
Відгуки про товар
Написати відгук
Технічний опис G125-MH20605L2P Harwin Inc.
Description: CONN HDR R/A 6POS, Packaging: Strip, Connector Type: Header, Voltage Rating: 450VAC/DC, Current Rating (Amps): 2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 6, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 150°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Green, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.189" (4.80mm), Insulation Height: 0.218" (5.55mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free, Row Spacing - Mating: 0.049" (1.25mm).
Інші пропозиції G125-MH20605L2P
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
G125-MH20605L2P | Виробник : Harwin |
Headers & Wire Housings Gecko-Latch MHRZ 3.0MM/SMT 2X13P |
товару немає в наявності |
|
| G125-MH20605L2P | Виробник : HARWIN |
Category: Raster signal connectors 1,25mm Description: Connector: wire-wire/PCB; socket; male; PIN: 6; Gecko Latch; 2A; THT Contact plating: gold-plated Locking system: latch Kind of connector: male Mechanical mounting: on PCBs Body material: polyamide Kind of package: reel Connector: socket Electrical mounting: THT Flammability rating: UL94V-0 Type of connector: wire-wire/PCB Contacts pitch: 1.25mm Current rating: 2A Number of pins: 6 Connector pinout layout: 2x3 Manufacturer series: Gecko Latch |
товару немає в наявності |
