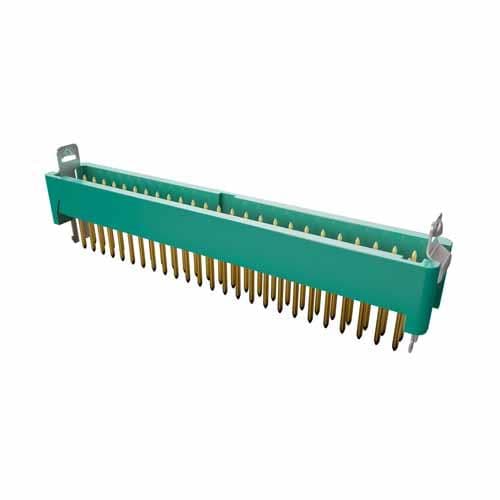

G125-MV15005L1P Harwin

Description: CONN HEADER VERT 50POS 1.25MM, Row Spacing - Mating: 0.049" (1.25mm), Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.193" (4.90mm), Contact Length - Post: 0.118" (3.00mm), Contact Shape: Circular, Part Status: Active, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.049" (1.25mm), Insulation Color: Green, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Latch Lock, Contact Type: Male Pin, Operating Temperature: -65°C ~ 150°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 50, Mounting Type: Through Hole, Current Rating (Amps): 2A per Contact, Connector Type: Header, Features: Board Lock, Pick and Place, Packaging: Bulk.
