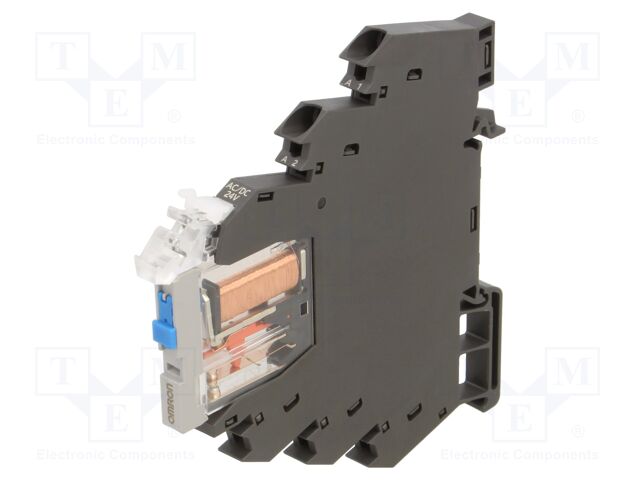

G2RV-ST501 AC/DC24 OMRON
Виробник: OMRON
Category: Electromagnetic Relays - Sets
Description: Relay: interface; SPDT; Ucoil: 24VDC; Ucntrl: 24VAC,24VDC; 6A; 100mΩ
Type of relay: interface
Contacts configuration: SPDT
Control voltage: 24V AC; 24V DC
Max. operating current: 6A
AC contacts rating @R: 6A / 250V AC
DC contacts rating @R: 6A / 30V DC
Mounting: for DIN rail mounting
Manufacturer series: G2RV-ST
Leads: spring clamps
Relay variant: interface
Switched voltage: max. 125V DC; max. 440V AC
Operate time: 20ms
Release time: 40ms
Operating temperature: -40...55°C
Contact material: AgNi
Body dimensions: 90x88x6.2mm
Contact resistance: 100mΩ
Mechanical durability: 5000000 cycles
Electrical life: 500000 cycles
Related items: PYDN-6.2ST-200R; PYDN-6.2ST-200S; PYDN-6.2ST-200Y
Optional equipment: test button with blocking function
Rated coil voltage: 24V DC
| Кількість | Ціна |
|---|---|
| 1+ | 793.88 грн |
| 10+ | 640.73 грн |
| 30+ | 576.99 грн |
| 100+ | 528.35 грн |
Відгуки про товар
Написати відгук
Технічний опис G2RV-ST501 AC/DC24 OMRON
Category: Electromagnetic Relays - Sets, Description: Relay: interface; SPDT; Ucoil: 24VDC; Ucntrl: 24VAC,24VDC; 6A; 100mΩ, Type of relay: interface, Contacts configuration: SPDT, Control voltage: 24V AC; 24V DC, Max. operating current: 6A, AC contacts rating @R: 6A / 250V AC, DC contacts rating @R: 6A / 30V DC, Mounting: for DIN rail mounting, Manufacturer series: G2RV-ST, Leads: spring clamps, Relay variant: interface, Switched voltage: max. 125V DC; max. 440V AC, Operate time: 20ms, Release time: 40ms, Operating temperature: -40...55°C, Contact material: AgNi, Body dimensions: 90x88x6.2mm, Contact resistance: 100mΩ, Mechanical durability: 5000000 cycles, Electrical life: 500000 cycles, Related items: PYDN-6.2ST-200R; PYDN-6.2ST-200S; PYDN-6.2ST-200Y, Optional equipment: test button with blocking function, Rated coil voltage: 24V DC.
Інші пропозиції G2RV-ST501 AC/DC24 за ціною від 1327.65 грн до 1729.10 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2RV-ST501 AC/DC24 | Виробник : Omron Automation and Safety |
Description: RELAY GEN PURPOSE SPDT 6A 24V Features: Socket Included Packaging: Box Mounting Type: DIN Rail Coil Voltage: 24VAC/DC Operating Temperature: -40°C ~ 55°C Termination Style: Spring Terminal Approval Agency: CE, cULus, TUV Relay Type: General Purpose Coil Current: 14.9 mA Coil Type: Non Latching Contact Material: Silver Alloy Contact Form: SPDT (1 Form C) Contact Rating (Current): 6 A Switching Voltage: 440VAC, 125VDC - Max Must Release Voltage: 2.4 VAC/DC Must Operate Voltage: 19.2 VAC/DC Operate Time: 20 ms Release Time: 40 ms Load - Max Switching: 2640VA, 750W |
на замовлення 74 шт: термін постачання 21-31 дні (днів) |
|
