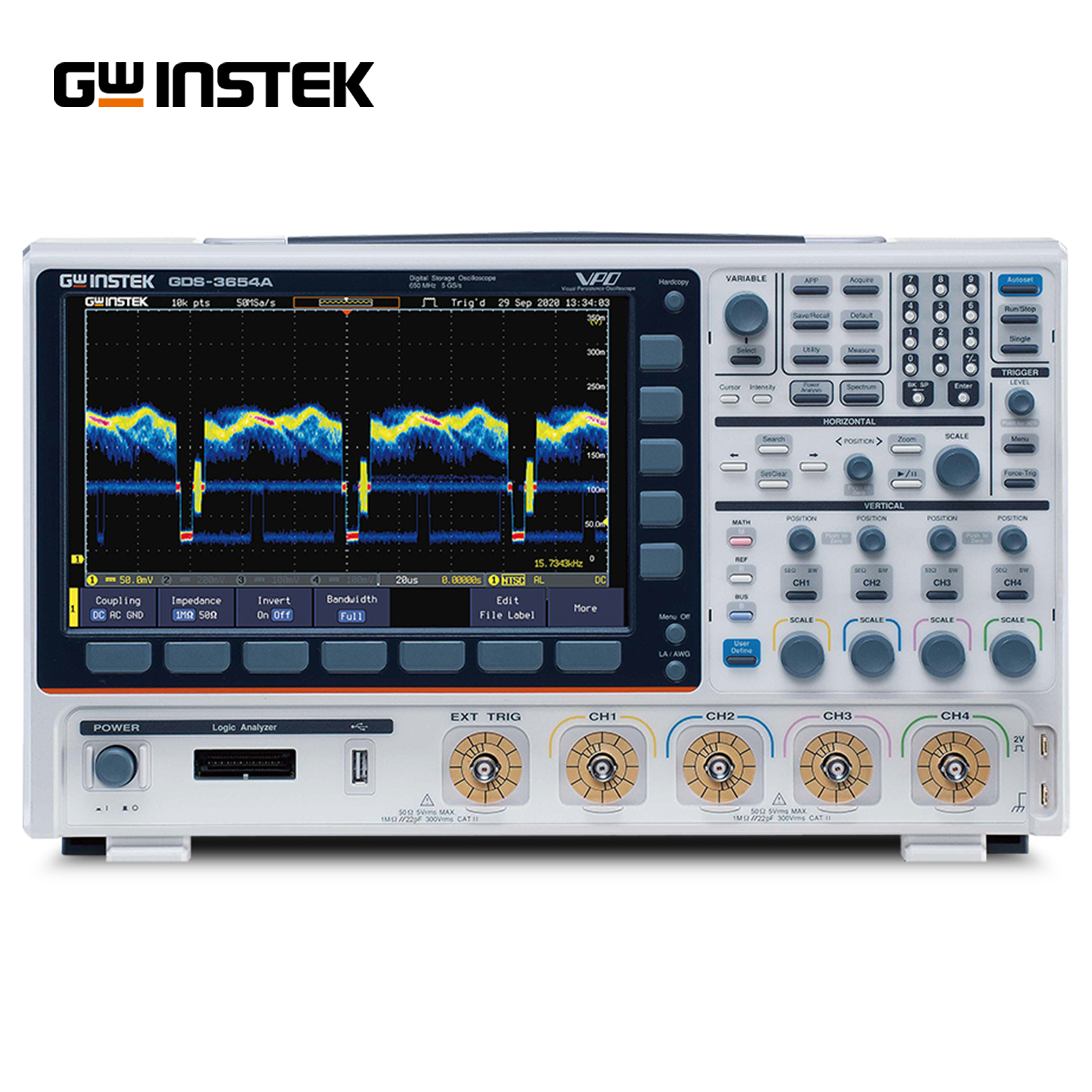

GDS-3654A GW INSTEK
Виробник: GW INSTEK
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 650MHz; 5Gsps; 200Mpts/ch; GDS-3000A
Manufacturer series: GDS-3000A
Related items: DS3A-16LA; DS3A-GPIB; DS3A-PWR; GCP-1030; GTL-232; GTL-246; GTL-248; GTP-351R; GTP-501R
Standard equipment: mains cable; oscilloscope probe with 10:1 divider
Interface: Ethernet; RS232; USB; VGA
Number of channels: 4
Kind of output connector: D-Sub female socket; D-Sub male socket; RJ45 socket; USB A socket; USB B socket
Display resolution: 800x480
Input impedance: 1MΩ/22pF
Dimensions: 420x253x113.8mm
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; split screen function
Sampling: 5Gsps
Type of oscilloscope: digital
Trigger: alternate; bus; impulse width; timeout; video signal; with delay
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Trigger modes: automatic; normal; single
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 300V
Alias: 01DS364A00GT
Band: 650MHz
Rise time: 535ps
Input sensitivity: 1mV/div...10V/div
Time base: 1...1000s/div
Memory record length: 200Mpts/ch
Kind of display used: colour; LCD TFT 10,2"
Supply voltage: 100...240V AC
кількість в упаковці: 1 шт
