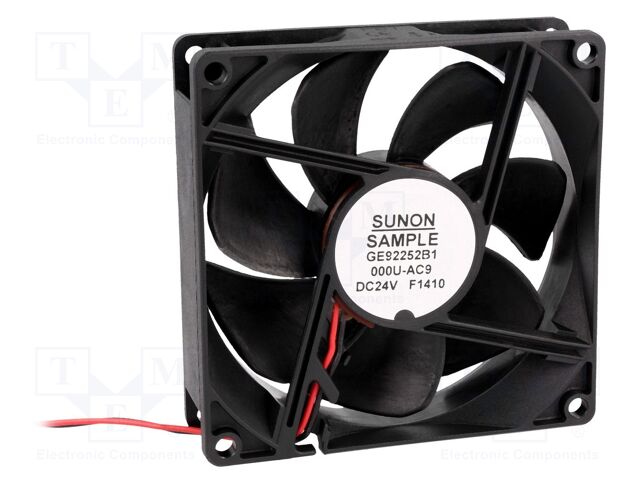

GE92252B1-000U-AC9

GE92252B1-000U-AC9 SUNON


pVersion=0046&contRep=ZT&docId=005056AB752F1ED48EB6BF3057A981EC&compId=GE92252B1-000U-AC9.pdf?ci_sign=8da0c221725ab83d2364eaddeab5b847f7e45e78 Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP56
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 5.28W
Current rating: 0.22A
Fan efficiency: 126.75m3/h
Noise level: 47dBA
Kind of Bearing: ball
Rotational rate/speed: 4500 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 8.89mm H2O
Operating voltage: 10...27.6V DC
IP rating: IP56
Insulation class: A
Wire size: 24AWG
Lead length: 0.315m
Additional functions: autorestart
Fan motor: brushless DC
на замовлення 30 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
1+2002.55 грн
10+1716.65 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GE92252B1-000U-AC9 SUNON

Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP56, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 92x92x25mm, Power consumption: 5.28W, Current rating: 0.22A, Fan efficiency: 126.75m3/h, Noise level: 47dBA, Kind of Bearing: ball, Rotational rate/speed: 4500 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 8.89mm H2O, Operating voltage: 10...27.6V DC, IP rating: IP56, Insulation class: A, Wire size: 24AWG, Lead length: 0.315m, Additional functions: autorestart, Fan motor: brushless DC, кількість в упаковці: 1 шт.

Інші пропозиції GE92252B1-000U-AC9 за ціною від 1545.82 грн до 2515.27 грн

Фото Назва Виробник Інформація Доступність
Ціна
GE92252B1-000U-AC9 GE92252B1-000U-AC9 Виробник : Sunon Fans (D09033280G-01)-1.pdf Description: FAN AXIAL 92X25MM 24VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 4500 RPM
Air Flow: 75.0 CFM (2.10m³/min)
Width: 25.00mm
Weight: 0.249 lb (112.94 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Ingress Protection: IP56 - Dust Protected, Water Resistant
Fan Type: Tubeaxial
Noise: 47.0dB(A)
Static Pressure: 0.350 in H2O (87.2 Pa)
Part Status: Active
Power (Watts): 5.28 W
на замовлення 1070 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+2267.00 грн
10+1945.15 грн
25+1858.15 грн
56+1675.02 грн
112+1618.09 грн
280+1545.82 грн
В кошику  од. на суму  грн.
GE92252B1-000U-AC9 GE92252B1-000U-AC9 Виробник : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1ED48EB6BF3057A981EC&compId=GE92252B1-000U-AC9.pdf?ci_sign=8da0c221725ab83d2364eaddeab5b847f7e45e78 Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP56
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 5.28W
Current rating: 0.22A
Fan efficiency: 126.75m3/h
Noise level: 47dBA
Kind of Bearing: ball
Rotational rate/speed: 4500 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 8.89mm H2O
Operating voltage: 10...27.6V DC
IP rating: IP56
Insulation class: A
Wire size: 24AWG
Lead length: 0.315m
Additional functions: autorestart
Fan motor: brushless DC
кількість в упаковці: 1 шт
на замовлення 30 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+2403.06 грн
10+2139.21 грн
50+1801.46 грн
В кошику  од. на суму  грн.
GE92252B1-000U-AC9 GE92252B1-000U-AC9 Виробник : Sunon (D09033280G-01)-1.pdf DC Fans Axial Fan, 92x92x25mm, 24VDC, 75CFM, 0.35"H2O, Ball, Wire, Auto Restart, IP56
на замовлення 24 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+2515.27 грн
10+2264.03 грн
25+1893.98 грн
56+1769.89 грн
112+1632.74 грн
280+1606.62 грн
504+1604.44 грн
