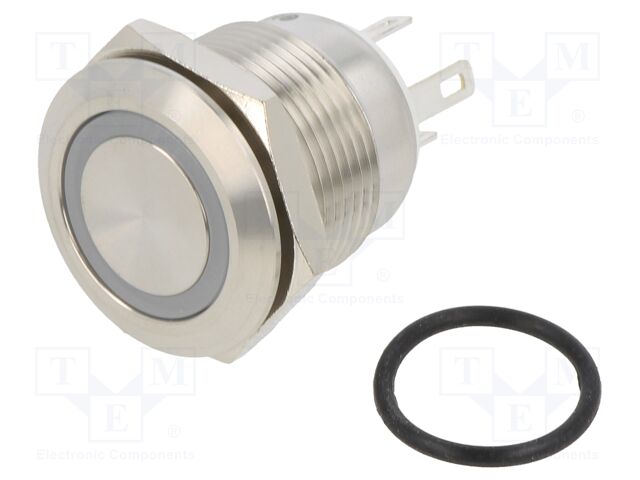

GQ19F-10E/J/G/12V/S ONPOW
Виробник: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC
IP rating: IP65
Operating temperature: -25...55°C
Mechanical durability: 1000000 cycles
Electrical life: 200000 cycles
Manufacturer series: GQ19
Related items: M12-19F
Switching method: OFF-(ON)
Contact material: silver alloy
Ring shape: rounded
Actuator colour: silver
Illumination: LED; ring
Leads dimensions: 2.8x0.5mm
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 2A / 36V DC
Mounting hole diameter: Ø19mm
Button shape: flat
Max. contact resistance:: 50mΩ
Stable positions number: 1
Operating Force: 4N
Number of positions: 2
Illumination voltage: 12V
Contacts configuration: SPST-NO
Type of switch: vandal resistant
Test voltage: 1.5kV
Backlight colour: green
Body colour: silver
Leads: connectors
Body material: stainless steel
Min. insulation resistance: 1GΩ
на замовлення 137 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 643.75 грн |
| 3+ | 412.06 грн |
| 7+ | 388.95 грн |
Відгуки про товар
Написати відгук
Технічний опис GQ19F-10E/J/G/12V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC, IP rating: IP65, Operating temperature: -25...55°C, Mechanical durability: 1000000 cycles, Electrical life: 200000 cycles, Manufacturer series: GQ19, Related items: M12-19F, Switching method: OFF-(ON), Contact material: silver alloy, Ring shape: rounded, Actuator colour: silver, Illumination: LED; ring, Leads dimensions: 2.8x0.5mm, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 2A / 36V DC, Mounting hole diameter: Ø19mm, Button shape: flat, Max. contact resistance:: 50mΩ, Stable positions number: 1, Operating Force: 4N, Number of positions: 2, Illumination voltage: 12V, Contacts configuration: SPST-NO, Type of switch: vandal resistant, Test voltage: 1.5kV, Backlight colour: green, Body colour: silver, Leads: connectors, Body material: stainless steel, Min. insulation resistance: 1GΩ, кількість в упаковці: 1 шт.
Інші пропозиції GQ19F-10E/J/G/12V/S за ціною від 431.26 грн до 772.50 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
GQ19F-10E/J/G/12V/S | Виробник : ONPOW |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC IP rating: IP65 Operating temperature: -25...55°C Mechanical durability: 1000000 cycles Electrical life: 200000 cycles Manufacturer series: GQ19 Related items: M12-19F Switching method: OFF-(ON) Contact material: silver alloy Ring shape: rounded Actuator colour: silver Illumination: LED; ring Leads dimensions: 2.8x0.5mm AC contacts rating @R: 0.5A / 220V AC DC contacts rating @R: 2A / 36V DC Mounting hole diameter: Ø19mm Button shape: flat Max. contact resistance:: 50mΩ Stable positions number: 1 Operating Force: 4N Number of positions: 2 Illumination voltage: 12V Contacts configuration: SPST-NO Type of switch: vandal resistant Test voltage: 1.5kV Backlight colour: green Body colour: silver Leads: connectors Body material: stainless steel Min. insulation resistance: 1GΩ кількість в упаковці: 1 шт |
на замовлення 137 шт: термін постачання 14-21 дні (днів) |
|
||||||||
| GQ19F-10E/J/G/12V/S | Виробник : ONPOW |
19mm; OFF-(ON); SPST-NO; stainless steel; pin terminals; illuminated LED 12V; dot; green; 2A; 36VDC; IP65; lifetime: 1000000 cycles GQ19F-10E/J/G/12V/S ONPOW PRZ GQ19F-10E/J/G/12V/S кількість в упаковці: 5 шт |
на замовлення 20 шт: термін постачання 28-31 дні (днів) |
|
