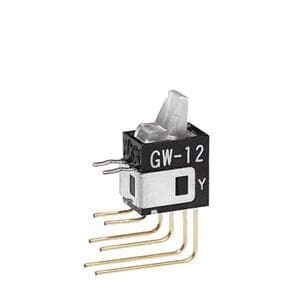

GW12LJVD NKK Switches

Category: Rocker Switches, Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; transparent; GW, Backlight colour: amber, Leads: angled; for soldering, Body colour: black, Contact material: phosphor bronze, Contacts configuration: SPDT, Kind of material: fiber glass reinforced, Mounting: THT, Contact plating: gold-plated, Illumination: LED, Switching method: ON-ON, Body material: polyamide, Type of switch: ROCKER, Button shape: rectangular, Key button colour: transparent, Operating temperature: -25...55°C, Terminal pitch: 2.54mm, Body dimensions: 5x7.68x7.65mm, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Max. contact resistance:: 80mΩ, Poles number: 1, Stable positions number: 2, Operating Force: 1N, Number of positions: 2, Number of terminals: 6, Electrical life: 50000 cycles, Mechanical durability: 50000 cycles, Manufacturer series: GW, Min. insulation resistance: 500MΩ.
