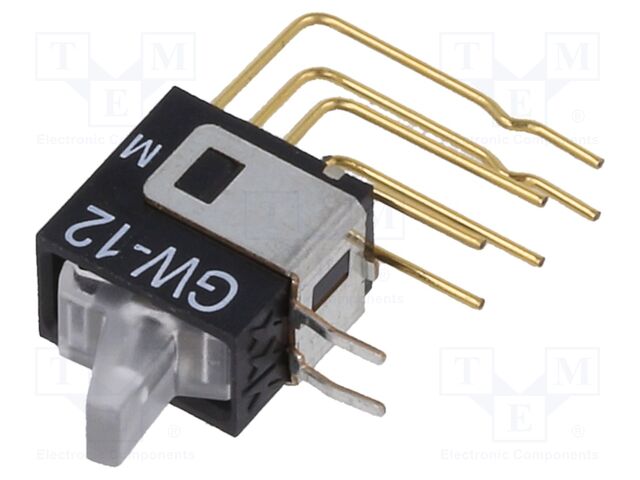

GW12LJVF NKK SWITCHES
Виробник: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; transparent
Body material: polyamide
Manufacturer series: GW
Poles number: 1
Operating temperature: -25...55°C
Kind of material: fiber glass reinforced
Max. contact resistance:: 80mΩ
Electrical life: 50000 cycles
Illumination: LED
Number of positions: 2
Contact plating: gold-plated
Terminal pitch: 2.54mm
Mounting: THT
Contact material: phosphor bronze
Button shape: rectangular
Type of switch: ROCKER
Mechanical durability: 50000 cycles
DC contacts rating @R: 0.1A / 28V DC
Body colour: black
AC contacts rating @R: 0.1A / 28V AC
Key button colour: transparent
Contacts configuration: SPDT
Stable positions number: 2
Number of terminals: 6
Leads: angled; for soldering
Operating Force: 1N
Backlight colour: green
Body dimensions: 5x7.68x7.65mm
Switching method: ON-ON
Min. insulation resistance: 500MΩ
Category: Rocker Switches
Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; transparent
Body material: polyamide
Manufacturer series: GW
Poles number: 1
Operating temperature: -25...55°C
Kind of material: fiber glass reinforced
Max. contact resistance:: 80mΩ
Electrical life: 50000 cycles
Illumination: LED
Number of positions: 2
Contact plating: gold-plated
Terminal pitch: 2.54mm
Mounting: THT
Contact material: phosphor bronze
Button shape: rectangular
Type of switch: ROCKER
Mechanical durability: 50000 cycles
DC contacts rating @R: 0.1A / 28V DC
Body colour: black
AC contacts rating @R: 0.1A / 28V AC
Key button colour: transparent
Contacts configuration: SPDT
Stable positions number: 2
Number of terminals: 6
Leads: angled; for soldering
Operating Force: 1N
Backlight colour: green
Body dimensions: 5x7.68x7.65mm
Switching method: ON-ON
Min. insulation resistance: 500MΩ
на замовлення 224 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 366.05 грн |
3+ | 268.05 грн |
9+ | 253.43 грн |
Відгуки про товар
Написати відгук
Технічний опис GW12LJVF NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; transparent, Body material: polyamide, Manufacturer series: GW, Poles number: 1, Operating temperature: -25...55°C, Kind of material: fiber glass reinforced, Max. contact resistance:: 80mΩ, Electrical life: 50000 cycles, Illumination: LED, Number of positions: 2, Contact plating: gold-plated, Terminal pitch: 2.54mm, Mounting: THT, Contact material: phosphor bronze, Button shape: rectangular, Type of switch: ROCKER, Mechanical durability: 50000 cycles, DC contacts rating @R: 0.1A / 28V DC, Body colour: black, AC contacts rating @R: 0.1A / 28V AC, Key button colour: transparent, Contacts configuration: SPDT, Stable positions number: 2, Number of terminals: 6, Leads: angled; for soldering, Operating Force: 1N, Backlight colour: green, Body dimensions: 5x7.68x7.65mm, Switching method: ON-ON, Min. insulation resistance: 500MΩ, кількість в упаковці: 1 шт.
Інші пропозиції GW12LJVF за ціною від 266.01 грн до 487.13 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GW12LJVF | Виробник : NKK SWITCHES |
Category: Rocker Switches Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; transparent Body material: polyamide Manufacturer series: GW Poles number: 1 Operating temperature: -25...55°C Kind of material: fiber glass reinforced Max. contact resistance:: 80mΩ Electrical life: 50000 cycles Illumination: LED Number of positions: 2 Contact plating: gold-plated Terminal pitch: 2.54mm Mounting: THT Contact material: phosphor bronze Button shape: rectangular Type of switch: ROCKER Mechanical durability: 50000 cycles DC contacts rating @R: 0.1A / 28V DC Body colour: black AC contacts rating @R: 0.1A / 28V AC Key button colour: transparent Contacts configuration: SPDT Stable positions number: 2 Number of terminals: 6 Leads: angled; for soldering Operating Force: 1N Backlight colour: green Body dimensions: 5x7.68x7.65mm Switching method: ON-ON Min. insulation resistance: 500MΩ кількість в упаковці: 1 шт |
на замовлення 224 шт: термін постачання 7-14 дні (днів) |
|
|||||||||||||||||||
GW12LJVF | Виробник : NKK Switches |
Description: SWITCH ROCKER SPDT 0.4VA 28V Packaging: Tray Features: Sealed - Flux Protection Current Rating (Amps): 0.4VA (AC/DC) Mounting Type: Through Hole, Right Angle, Vertical Circuit: SPDT Switch Function: On-On Operating Temperature: -25°C ~ 55°C Termination Style: PC Pin Illumination Type, Color: LED, Green Illumination Voltage (Nominal): 2.1 VDC Actuator Type: Paddle - Illuminated Color - Actuator/Cap: Clear Actuator Marking: No Marking Voltage Rating - AC: 28 V Voltage Rating - DC: 28 V |
на замовлення 14009 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
GW12LJVF | Виробник : NKK Switches | Rocker Switches SPDT ON-ON 0.4VA GRN VERTICAL PC |
на замовлення 75 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||||
GW12LJVF | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Paddle 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
на замовлення 1 шт: термін постачання 21-31 дні (днів) |
||||||||||||||||||||
GW12LJVF | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Paddle 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
товар відсутній |
||||||||||||||||||||
GW12LJVF | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Paddle 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
товар відсутній |
||||||||||||||||||||
GW12LJVF | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Paddle 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
товар відсутній |
