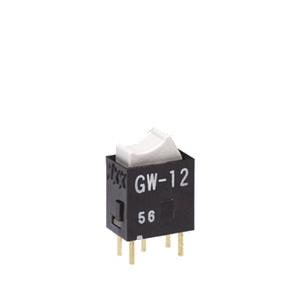

GW12RBP NKK Switches
Виробник: NKK Switches
Description: SWITCH ROCKER SPDT 0.4VA 28V
Voltage Rating - DC: 28 V
Voltage Rating - AC: 28 V
Actuator Marking: No Marking
Color - Actuator/Cap: White
Approval Agency: CSA, UL
Actuator Type: Concave (Curved)
Termination Style: PC Pin
Operating Temperature: -30°C ~ 85°C
Switch Function: On-On
Circuit: SPDT
Mounting Type: Through Hole
Current Rating (Amps): 0.4VA (AC/DC)
Features: Sealed - Flux Protection
Packaging: Tray
| Кількість | Ціна |
|---|---|
| 2+ | 294.59 грн |
| 10+ | 245.02 грн |
| 25+ | 231.05 грн |
| 50+ | 207.42 грн |
| 100+ | 198.39 грн |
Відгуки про товар
Написати відгук
Технічний опис GW12RBP NKK Switches
Category: Rocker Switches, Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; white; GW; THT, Body material: polyamide, Operating temperature: -30...85°C, Key button colour: white, Manufacturer series: GW, Illumination: none, Switching method: ON-ON, Contact material: phosphor bronze, Button shape: rectangular, Type of switch: ROCKER, Contacts configuration: SPDT, Mounting: THT, Terminal pitch: 2.54mm, Body dimensions: 4.5x7x7mm, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Max. contact resistance:: 80mΩ, Poles number: 1, Operating Force: 1.7N, Stable positions number: 2, Number of positions: 2, Number of terminals: 5, Electrical life: 50000 cycles, Mechanical durability: 50000 cycles, Min. insulation resistance: 500MΩ, Leads: for soldering; straight, Body colour: black, Kind of material: fiber glass reinforced, Contact plating: gold-plated.
Інші пропозиції GW12RBP
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
|---|---|---|---|---|---|
 |
GW12RBP | NKK Switches |
Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
товару немає в наявності |
В кошику од. на суму грн. |
 |
GW12RBP | NKK Switches |
Rocker Switches SPDT ON-ON WHT ROCKER ACTUATOR |
товару немає в наявності |
Мінімальне замовлення: 2 шт В кошику од. на суму грн. |
| GW12RBP | NKK SWITCHES |
Category: Rocker Switches Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; white; GW; THT Body material: polyamide Operating temperature: -30...85°C Key button colour: white Manufacturer series: GW Illumination: none Switching method: ON-ON Contact material: phosphor bronze Button shape: rectangular Type of switch: ROCKER Contacts configuration: SPDT Mounting: THT Terminal pitch: 2.54mm Body dimensions: 4.5x7x7mm AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Max. contact resistance:: 80mΩ Poles number: 1 Operating Force: 1.7N Stable positions number: 2 Number of positions: 2 Number of terminals: 5 Electrical life: 50000 cycles Mechanical durability: 50000 cycles Min. insulation resistance: 500MΩ Leads: for soldering; straight Body colour: black Kind of material: fiber glass reinforced Contact plating: gold-plated |
товару немає в наявності |
В кошику од. на суму грн. |
| GW12RBP |
|
Виробник: NKK Switches
Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles
Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles
товару немає в наявності
В кошику
од. на суму грн.
| GW12RBP |
|
Виробник: NKK Switches
Rocker Switches SPDT ON-ON WHT ROCKER ACTUATOR
Rocker Switches SPDT ON-ON WHT ROCKER ACTUATOR
товару немає в наявності
Мінімальне замовлення: 2 шт
В кошику
од. на суму грн.
| GW12RBP |
|
Виробник: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; white; GW; THT
Body material: polyamide
Operating temperature: -30...85°C
Key button colour: white
Manufacturer series: GW
Illumination: none
Switching method: ON-ON
Contact material: phosphor bronze
Button shape: rectangular
Type of switch: ROCKER
Contacts configuration: SPDT
Mounting: THT
Terminal pitch: 2.54mm
Body dimensions: 4.5x7x7mm
AC contacts rating @R: 0.1A / 28V AC
DC contacts rating @R: 0.1A / 28V DC
Max. contact resistance:: 80mΩ
Poles number: 1
Operating Force: 1.7N
Stable positions number: 2
Number of positions: 2
Number of terminals: 5
Electrical life: 50000 cycles
Mechanical durability: 50000 cycles
Min. insulation resistance: 500MΩ
Leads: for soldering; straight
Body colour: black
Kind of material: fiber glass reinforced
Contact plating: gold-plated
Category: Rocker Switches
Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; white; GW; THT
Body material: polyamide
Operating temperature: -30...85°C
Key button colour: white
Manufacturer series: GW
Illumination: none
Switching method: ON-ON
Contact material: phosphor bronze
Button shape: rectangular
Type of switch: ROCKER
Contacts configuration: SPDT
Mounting: THT
Terminal pitch: 2.54mm
Body dimensions: 4.5x7x7mm
AC contacts rating @R: 0.1A / 28V AC
DC contacts rating @R: 0.1A / 28V DC
Max. contact resistance:: 80mΩ
Poles number: 1
Operating Force: 1.7N
Stable positions number: 2
Number of positions: 2
Number of terminals: 5
Electrical life: 50000 cycles
Mechanical durability: 50000 cycles
Min. insulation resistance: 500MΩ
Leads: for soldering; straight
Body colour: black
Kind of material: fiber glass reinforced
Contact plating: gold-plated
