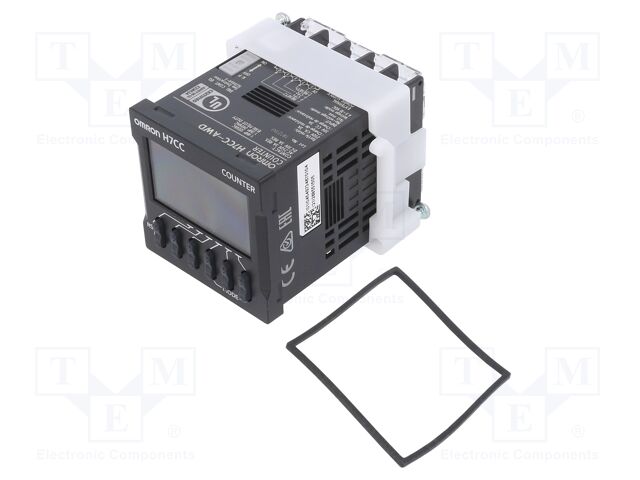

H7CC-AWD OMRON
Виробник: OMRONCategory: Impulse Counters
Description: Counter: electronical; LCD; pulses; -99999÷999999; SPST; 12÷48VDC
Type of counter: electronical
Kind of display used: LCD
Type of counted signal: pulses
Counting range: -99999...999999
Resetting method: electrical; manual
Kind of input 1: contact; NPN; PNP
Electrical input 1 parameters: high level: 4,5...30V; low level: 0...2V
Kind of input 2: contact; NPN; PNP
Electrical input 2 parameters: high level: 4,5...30V; low level: 0...2V
Max IN1 counting frequency: 10kHz
Operating temperature: -10...55°C
Display height 1: 10mm
Mounting hole diameter: 45x45mm
Electrical connection: screw terminals
Mounting: on panel
Kind of counter: progressive/reversing; with preset value; with tachometer function
IN2 max counting frequency: 10kHz
Output 1 electrical parameters: 30V DC / 100mA
Kind of output 1: SPST
Kind of output 2: SPDT
Display 2 height: 6mm
Supply voltage: 12...48V DC; 24V AC
Output 2 electrical parameters: 240V AC / 3A
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 20828.52 грн |
Відгуки про товар
Написати відгук
Технічний опис H7CC-AWD OMRON
Category: Impulse Counters, Description: Counter: electronical; LCD; pulses; -99999÷999999; SPST; 12÷48VDC, Type of counter: electronical, Kind of display used: LCD, Type of counted signal: pulses, Counting range: -99999...999999, Resetting method: electrical; manual, Kind of input 1: contact; NPN; PNP, Electrical input 1 parameters: high level: 4,5...30V; low level: 0...2V, Kind of input 2: contact; NPN; PNP, Electrical input 2 parameters: high level: 4,5...30V; low level: 0...2V, Max IN1 counting frequency: 10kHz, Operating temperature: -10...55°C, Display height 1: 10mm, Mounting hole diameter: 45x45mm, Electrical connection: screw terminals, Mounting: on panel, Kind of counter: progressive/reversing; with preset value; with tachometer function, IN2 max counting frequency: 10kHz, Output 1 electrical parameters: 30V DC / 100mA, Kind of output 1: SPST, Kind of output 2: SPDT, Display 2 height: 6mm, Supply voltage: 12...48V DC; 24V AC, Output 2 electrical parameters: 240V AC / 3A, кількість в упаковці: 1 шт.
Інші пропозиції H7CC-AWD за ціною від 23174.30 грн до 51534.04 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
H7CC-AWD | Виробник : OMRON |
Category: Impulse Counters Description: Counter: electronical; LCD; pulses; -99999÷999999; SPST; 12÷48VDC Type of counter: electronical Kind of display used: LCD Type of counted signal: pulses Counting range: -99999...999999 Resetting method: electrical; manual Kind of input 1: contact; NPN; PNP Electrical input 1 parameters: high level: 4,5...30V; low level: 0...2V Kind of input 2: contact; NPN; PNP Electrical input 2 parameters: high level: 4,5...30V; low level: 0...2V Max IN1 counting frequency: 10kHz Operating temperature: -10...55°C Display height 1: 10mm Mounting hole diameter: 45x45mm Electrical connection: screw terminals Mounting: on panel Kind of counter: progressive/reversing; with preset value; with tachometer function IN2 max counting frequency: 10kHz Output 1 electrical parameters: 30V DC / 100mA Kind of output 1: SPST Kind of output 2: SPDT Display 2 height: 6mm Supply voltage: 12...48V DC; 24V AC Output 2 electrical parameters: 240V AC / 3A кількість в упаковці: 1 шт |
на замовлення 2 шт: термін постачання 14-21 дні (днів) |
|
||||||||
 |
H7CC-AWD | Виробник : Omron Automation and Safety |
Description: COUNTER/TACHOMETER,DIGITAL,MULTI Packaging: Box Display Type: LCD - Dual Color Characters, Backlight Output Type: Relay Mounting Type: Panel Mount Type: Batch, Preset, Tachometer, Totalizer Reset: External, Front Panel, Programmable Termination Style: Screw Terminal Voltage - Supply: 24VAC, 12 ~ 48VDC Input Type: No Voltage, Voltage Operating Mode: Up, Down, Command, Individual, Quadrature Count Rate: 30Hz, 10kHz Ingress Protection: IP66 - Dust Tight, Water Resistant Panel Cutout Dimensions: Square - 45.00mm x 45.00mm Display Characters - Height: 0.394" (10.00mm), 0.236" (6.00mm) Number of Characters Per Row: 6, 6 Part Status: Active |
на замовлення 6 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
H7CC-AWD | Виробник : Omron Automation and Safety |
Counters & Tachometers Counter/Tachometer,Digital,Multi-function,2-stage,Screw Term,12-48VDC,Contact SPST+SPDT |
на замовлення 4 шт: термін постачання 21-30 дні (днів) |
|
||||||||
 |
H7CC-AWD | Виробник : OMRON INDUSTRIAL AUTOMATION |
Description: OMRON INDUSTRIAL AUTOMATION - H7CC-AWD - COUNTER, 6-DIGIT, SPDT, SCREW, 48VDC tariffCode: 90291000 rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Höhe des Frontplattenausschnitts: 45mm usEccn: EAR99 Betriebstemperatur, min.: -10°C Versorgungsspannung, min.: 12VDC Breite des Frontplattenausschnitts: 45mm euEccn: NLR Ziffernhöhe: 10mm Produktpalette: H7CC-A Series productTraceability: Yes-Date/Lot Code Versorgungsspannung, max.: 48VDC Betriebstemperatur, max.: 55°C Anzahl der Ziffern / Zeichen: 6 directShipCharge: 25 SVHC: No SVHC (17-Dec-2014) |
на замовлення 3 шт: термін постачання 21-31 дні (днів) |
|
