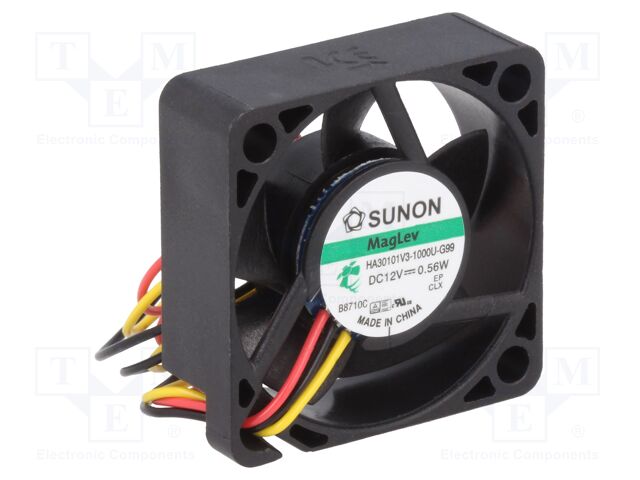

HA30101V3-1000U-G99 SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 30x30x10mm
Power consumption: 0.56W
Current rating: 25mA
Fan efficiency: 5.92m3/h
Noise level: 15.1dBA
Kind of Bearing: Vapo
Rotational rate/speed: 7000 (±20%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Static pressure: 2.54mm H2O
Insulation class: A
Wire size: 28AWG
Lead length: 0.145m
Additional functions: autorestart
Signal output: F type
Flammability rating: UL94V-0
Fan motor: brushless DC
Current and power consumption tolerance: ±15%
на замовлення 1286 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 402.14 грн |
| 10+ | 323.52 грн |
| 40+ | 280.44 грн |
| 200+ | 266.08 грн |
Відгуки про товар
Написати відгук
Технічний опис HA30101V3-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 30x30x10mm, Power consumption: 0.56W, Current rating: 25mA, Fan efficiency: 5.92m3/h, Noise level: 15.1dBA, Kind of Bearing: Vapo, Rotational rate/speed: 7000 (±20%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Static pressure: 2.54mm H2O, Insulation class: A, Wire size: 28AWG, Lead length: 0.145m, Additional functions: autorestart, Signal output: F type, Flammability rating: UL94V-0, Fan motor: brushless DC, Current and power consumption tolerance: ±15%, кількість в упаковці: 1 шт.
Інші пропозиції HA30101V3-1000U-G99 за ціною від 319.29 грн до 510.07 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HA30101V3-1000U-G99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 30x30x10mm; 5.92m3/h; 15.1dBA; Vapo; 28AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V DC Fan dimensions: 30x30x10mm Power consumption: 0.56W Current rating: 25mA Fan efficiency: 5.92m3/h Noise level: 15.1dBA Kind of Bearing: Vapo Rotational rate/speed: 7000 (±20%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x3 Operating temperature: -10...70°C Static pressure: 2.54mm H2O Insulation class: A Wire size: 28AWG Lead length: 0.145m Additional functions: autorestart Signal output: F type Flammability rating: UL94V-0 Fan motor: brushless DC Current and power consumption tolerance: ±15% кількість в упаковці: 1 шт |
на замовлення 1286 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| HA30101V3-1000U-G99 | Виробник : Sunon |
HA30101V3-1000U-G99 |
на замовлення 1495 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| HA30101V3-1000U-G99 | Виробник : Sunon Fans |
Description: 12VDC FAN 30X10MM ALARM Features: Auto Restart, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 30mm L x 30mm H Bearing Type: Vapo-Bearing™ RPM: 7000 RPM Air Flow: 3.5 CFM (0.098m³/min) Width: 10.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 15.1dB(A) Static Pressure: 0.100 in H2O (24.9 Pa) Power (Watts): 0.3 W |
товару немає в наявності |
||||||||||||
| HA30101V3-1000U-G99 | Виробник : Sunon |
DC Fans Axial Fan, 30x30x10mm, 12VDC, 0.1 " H2O, Vapo, 3x Wire, Auto Restart, Tach |
товару немає в наявності |
