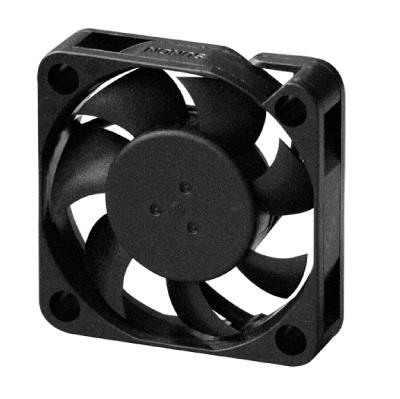

HA40101V4-1000U-A99 SUNON

Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 9.13m3/h; 15.7dBA; Vapo; 5000rpm
Operating temperature: -10...70°C
Related items: SR4-15.5
Enclosure material: thermoplastic
Impeller material: thermoplastic
Flammability rating: UL94V-0
Storage temperature: -40...70°C
Current rating: 31mA
Fan dimensions: 40x40x10mm
Lead length: 0.3m
Power consumption: 0.43W
Supply voltage: 12V DC
Static pressure: 2.28mm H2O
Operating voltage: 4.5...13.8V DC
Fan efficiency: 9.13m3/h
Noise level: 15.7dBA
Wire size: 26AWG
Rotational rate/speed: 5000rpm
Min. insulation resistance: 10MΩ
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: Vapo
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
на замовлення 2256 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
3+ | 201.16 грн |
50+ | 141.67 грн |
100+ | 128.22 грн |
200+ | 121.89 грн |
Відгуки про товар
Написати відгук
Технічний опис HA40101V4-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x10mm; 9.13m3/h; 15.7dBA; Vapo; 5000rpm, Operating temperature: -10...70°C, Related items: SR4-15.5, Enclosure material: thermoplastic, Impeller material: thermoplastic, Flammability rating: UL94V-0, Storage temperature: -40...70°C, Current rating: 31mA, Fan dimensions: 40x40x10mm, Lead length: 0.3m, Power consumption: 0.43W, Supply voltage: 12V DC, Static pressure: 2.28mm H2O, Operating voltage: 4.5...13.8V DC, Fan efficiency: 9.13m3/h, Noise level: 15.7dBA, Wire size: 26AWG, Rotational rate/speed: 5000rpm, Min. insulation resistance: 10MΩ, Additional functions: autorestart, Kind of fan: axial, Kind of Bearing: Vapo, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, кількість в упаковці: 1 шт.
Інші пропозиції HA40101V4-1000U-A99 за ціною від 146.26 грн до 433.18 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
HA40101V4-1000U-A99 | Виробник : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 40x40x10mm; 9.13m3/h; 15.7dBA; Vapo; 5000rpm Operating temperature: -10...70°C Related items: SR4-15.5 Enclosure material: thermoplastic Impeller material: thermoplastic Flammability rating: UL94V-0 Storage temperature: -40...70°C Current rating: 31mA Fan dimensions: 40x40x10mm Lead length: 0.3m Power consumption: 0.43W Supply voltage: 12V DC Static pressure: 2.28mm H2O Operating voltage: 4.5...13.8V DC Fan efficiency: 9.13m3/h Noise level: 15.7dBA Wire size: 26AWG Rotational rate/speed: 5000rpm Min. insulation resistance: 10MΩ Additional functions: autorestart Kind of fan: axial Kind of Bearing: Vapo Fan motor: brushless DC Type of fan: DC Leads: leads x2 кількість в упаковці: 1 шт |
на замовлення 2256 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||
![]() |
HA40101V4-1000U-A99 | Виробник : Sunon Fans |
![]() Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Vapo-Bearing™ RPM: 5000 RPM Air Flow: 5.4 CFM (0.151m³/min) Width: 10.00mm Weight: 0.034 lb (15.42 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 15.7dB(A) Static Pressure: 0.090 in H2O (22.4 Pa) Part Status: Active Power (Watts): 380 mW |
на замовлення 1249 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
![]() |
HA40101V4-1000U-A99 | Виробник : Sunon |
![]() |
на замовлення 1881 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
HA40101V4-1000U-A99 | Виробник : Sunon |
![]() |
на замовлення 510 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||
HA40101V4-1000U-A99 Код товару: 188746
Додати до обраних
Обраний товар
|
![]() |
товару немає в наявності
|
