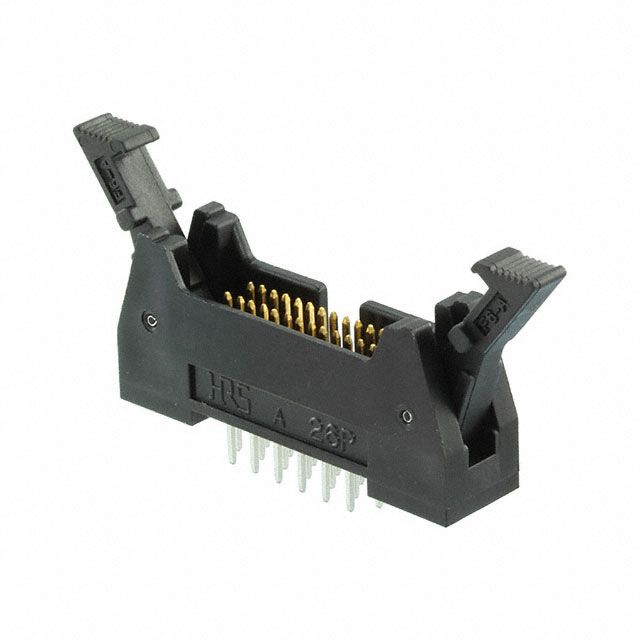

HIF6-26PA-1.27DSA(71) Hirose Electric Co Ltd

Description: CONN HEADER VERT 26POS 1.27MM, Packaging: Tray, Features: Keying Slot, Mounting Flange, Connector Type: Header, Voltage Rating: 300V, Current Rating (Amps): 0.5A, Mounting Type: Through Hole, Number of Positions: 26, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.606" (15.39mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.563" (14.30mm), Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.217" (5.50mm).
