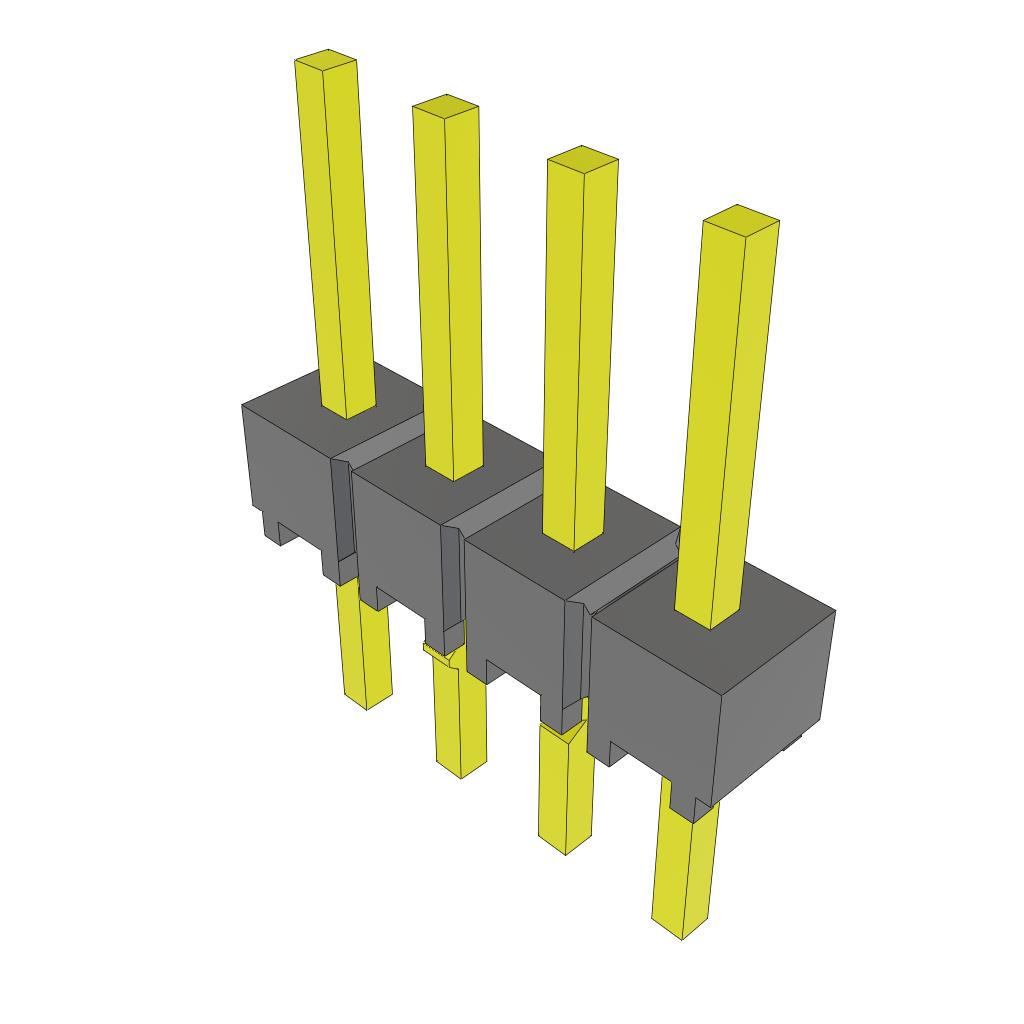

HMTSW-104-24-S-S-230-LL Samtec

Description: CONN HEADER VERT 4POS 2.54MM, Contact Length - Mating: 0.230" (5.84mm), Insulation Material: Liquid Crystal Polymer (LCP), Overall Contact Length: 0.480" (12.19mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.150" (3.81mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Natural, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Kinked Pin, Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 1, Number of Positions: 4, Mounting Type: Through Hole, Current Rating (Amps): 3A, Connector Type: Header, Packaging: Bulk.
