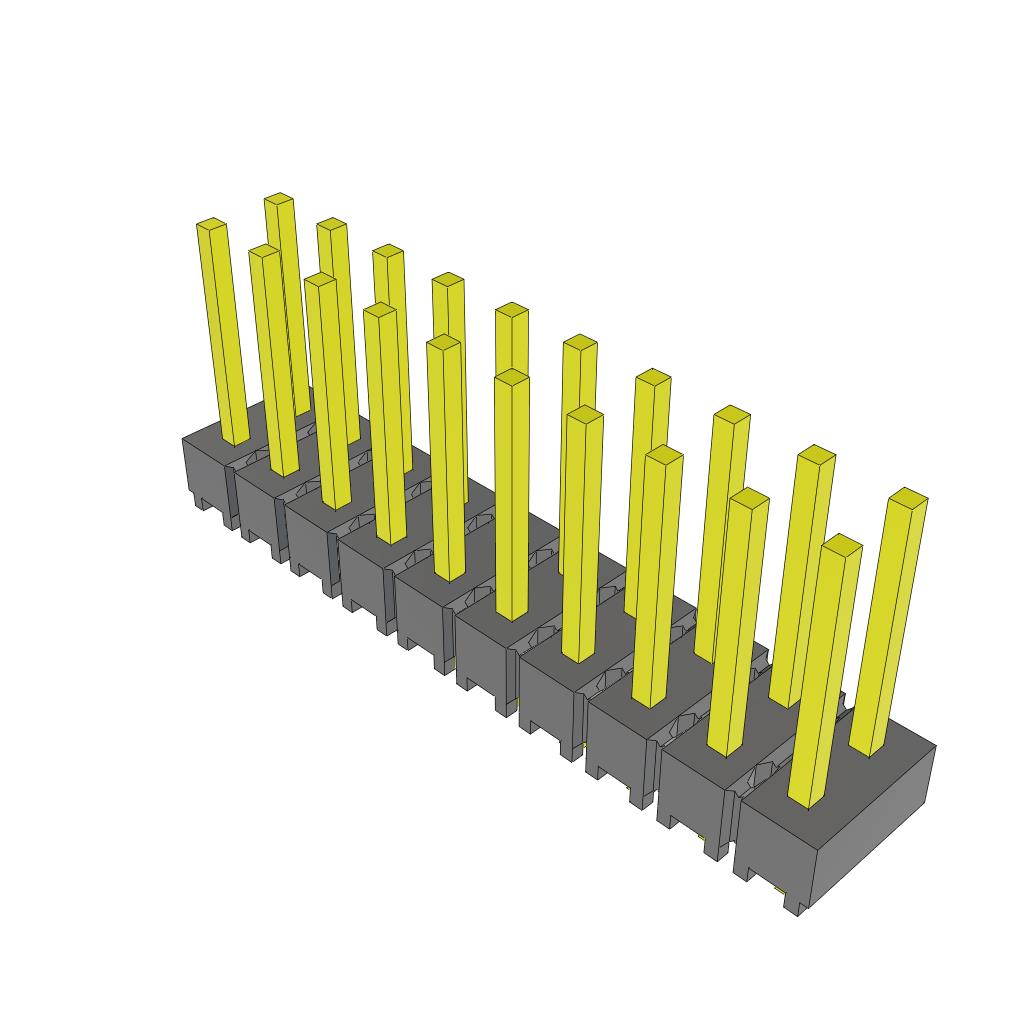

HMTSW-110-07-G-D-300 Samtec Inc.

Description: CONN HEADER VERT 20POS 2.54MM, Packaging: Bulk, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.030" (0.76mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.430" (10.92mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.300" (7.62mm).
