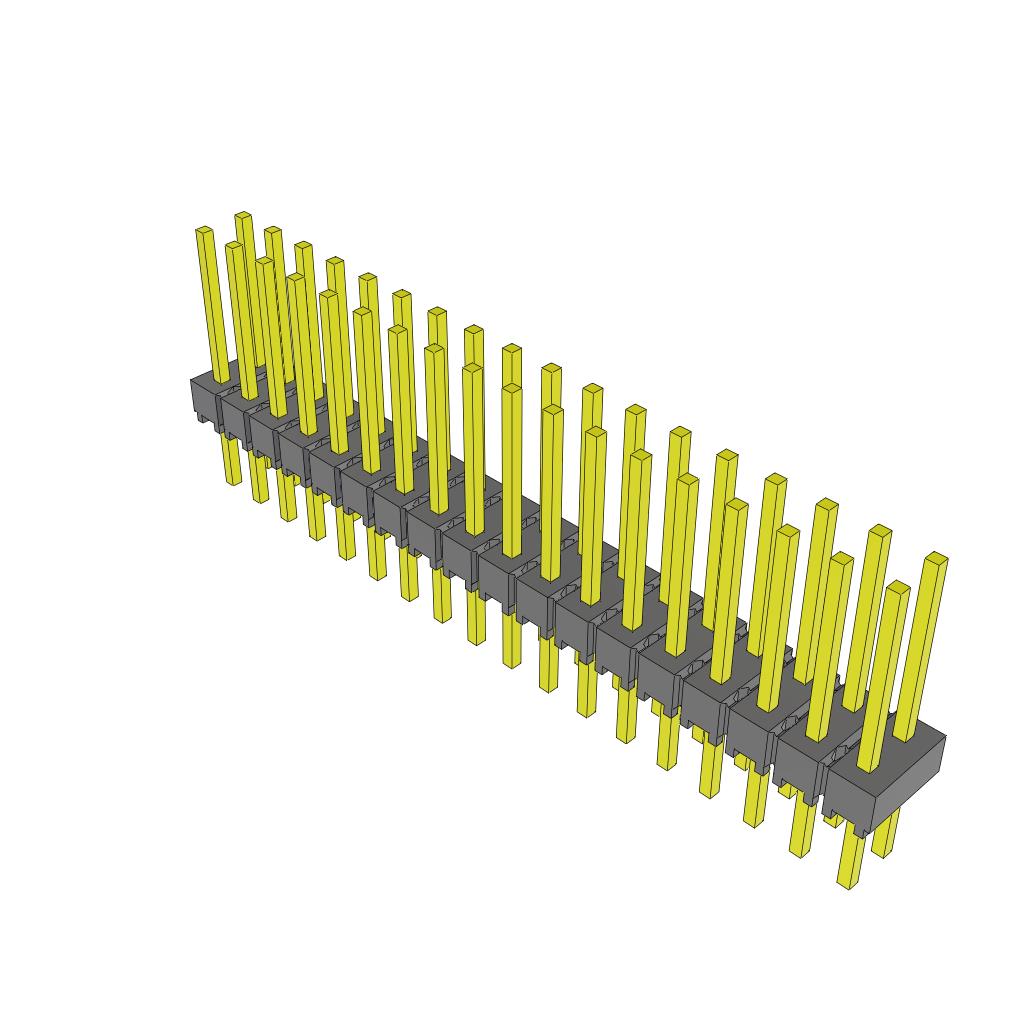

HMTSW-118-22-S-D-360 Samtec Inc.
Виробник: Samtec Inc.Description: .100" HIGH-TEMP VARIABLE POST HE
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 36
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.170" (4.32mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.630" (16.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.360" (9.14mm)
на замовлення 142 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 456.11 грн |
Відгуки про товар
Написати відгук
Технічний опис HMTSW-118-22-S-D-360 Samtec Inc.
Description: .100" HIGH-TEMP VARIABLE POST HE, Packaging: Bulk, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 36, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.170" (4.32mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.630" (16.00mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.360" (9.14mm).
Інші пропозиції HMTSW-118-22-S-D-360 за ціною від 311.78 грн до 503.19 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HMTSW-118-22-S-D-360 | Виробник : Samtec |
Headers & Wire Housings .100" High-Temp Variable Post Height Terminal Strip |
на замовлення 10 шт: термін постачання 21-30 дні (днів) |
|
