Продукція > SAMTEC INC. > HTSS-105-04-F-D-RA

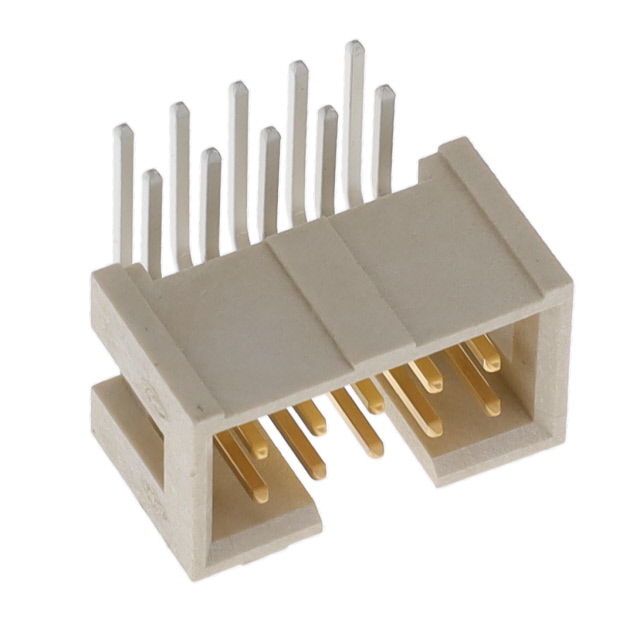

HTSS-105-04-F-D-RA

HTSS-105-04-F-D-RA Samtec Inc.

htss-1xx-xx-xx-d-xx-xx-mkt.pdf Виробник: Samtec Inc.
Description: CONN HEADER R/A 10POS 2.54MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.365" (9.27mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
на замовлення 939 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+261.19 грн
10+205.11 грн
100+167.22 грн
500+136.07 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HTSS-105-04-F-D-RA Samtec Inc.

Description: CONN HEADER R/A 10POS 2.54MM, Packaging: Tube, Features: Keying Slot, Connector Type: Header, Mounting Type: Through Hole, Right Angle, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.365" (9.27mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).

Інші пропозиції HTSS-105-04-F-D-RA

Фото Назва Виробник Інформація Доступність
Ціна
HTSS-105-04-F-D-RA HTSS-105-04-F-D-RA Виробник : Samtec htss-1370240.pdf Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip
на замовлення 100 шт:
термін постачання 21-30 дні (днів)
В кошику  од. на суму  грн.
