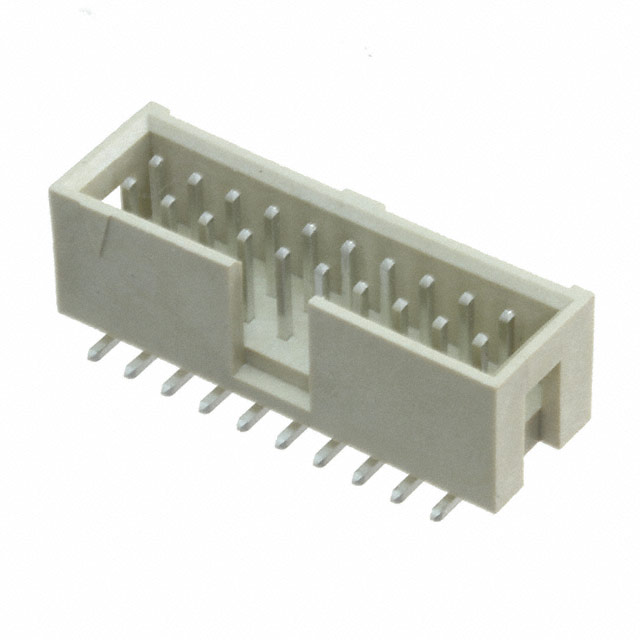

HTSS-110-01-T-DV Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 20POS 2.54MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
Description: CONN HEADER SMD 20POS 2.54MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
на замовлення 1081 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 175.49 грн |
10+ | 153.34 грн |
100+ | 135.09 грн |
500+ | 107.77 грн |
1000+ | 91.92 грн |
Відгуки про товар
Написати відгук
Технічний опис HTSS-110-01-T-DV Samtec Inc.
Description: CONN HEADER SMD 20POS 2.54MM, Packaging: Tube, Features: Keying Slot, Connector Type: Header, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.350" (8.89mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).
Інші пропозиції HTSS-110-01-T-DV за ціною від 92.13 грн до 223.93 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HTSS-110-01-T-DV | Виробник : Samtec | Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip |
на замовлення 396 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||
HTSS-110-01-T-DV | Виробник : SAMTEC |
Description: SAMTEC - HTSS-110-01-T-DV - Stiftleiste, Board-to-Board, 2.54 mm, 2 Reihe(n), 20 Kontakt(e), Oberflächenmontage, HTSS tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 20Contacts euEccn: NLR Steckverbindersysteme: Board-to-Board Produktpalette: HTSS productTraceability: No Kontaktanschluss: Oberflächenmontage Anzahl der Reihen: 2Rows Rastermaß: 2.54mm |
на замовлення 138 шт: термін постачання 21-31 дні (днів) |
|
