Продукція > SAMTEC INC. > HTST-105-02-L-D
HTST-105-02-L-D

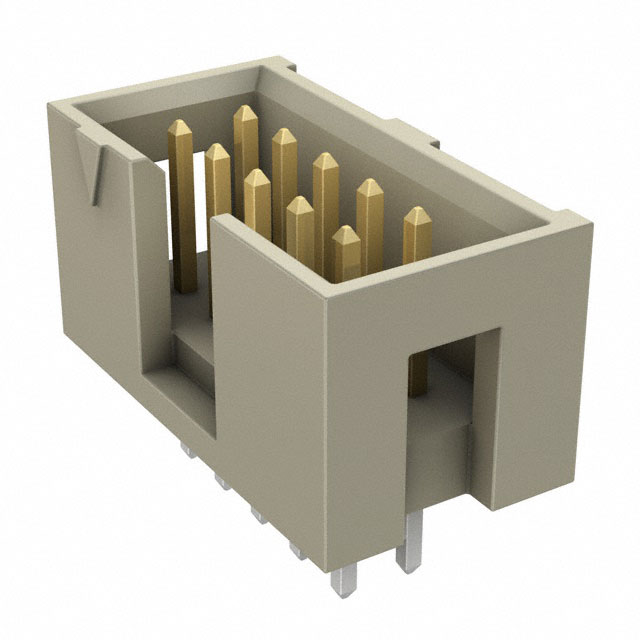

HTST-105-02-L-D Samtec Inc.

htst-1xx-xx-xx-d-xx-xx-mkt.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 10POS 2.54MM
Contact Length - Mating: 0.250" (6.35mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Overall Contact Length: 0.530" (13.46mm)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.350" (8.89mm)
Contact Length - Post: 0.165" (4.19mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Natural
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 10
Mounting Type: Through Hole
Current Rating (Amps): 3.4A per Contact
Connector Type: Header
Packaging: Bulk
Contact Finish - Mating: Gold
Features: Keying Slot
на замовлення 6435 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+190.47 грн
10+155.64 грн
100+132.21 грн
500+110.75 грн
1000+105.47 грн
5000+101.93 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HTST-105-02-L-D Samtec Inc.

Description: CONN HEADER VERT 10POS 2.54MM, Contact Length - Mating: 0.250" (6.35mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Liquid Crystal Polymer (LCP), Overall Contact Length: 0.530" (13.46mm), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.350" (8.89mm), Contact Length - Post: 0.165" (4.19mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Pitch - Mating: 0.100" (2.54mm), Insulation Color: Natural, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 10, Mounting Type: Through Hole, Current Rating (Amps): 3.4A per Contact, Connector Type: Header, Packaging: Bulk, Contact Finish - Mating: Gold, Features: Keying Slot.
