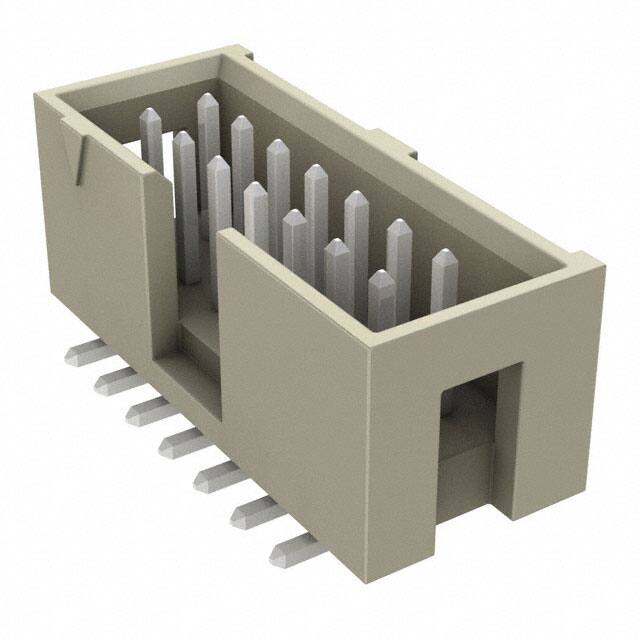

HTST-107-01-T-DV Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 14POS 2.54MM
Contact Length - Mating: 0.250" (6.35mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.350" (8.89mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish - Mating: Tin
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Natural
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 14
Mounting Type: Surface Mount
Current Rating (Amps): 3.4A per Contact
Connector Type: Header
Features: Keying Slot
Packaging: Tube
| Кількість | Ціна |
|---|---|
| 4+ | 94.27 грн |
| 10+ | 77.31 грн |
| 100+ | 65.67 грн |
| 500+ | 55.01 грн |
Відгуки про товар
Написати відгук
Технічний опис HTST-107-01-T-DV Samtec Inc.
Description: CONN HEADER SMD 14POS 2.54MM, Contact Length - Mating: 0.250" (6.35mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.350" (8.89mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish - Mating: Tin, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Natural, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 14, Mounting Type: Surface Mount, Current Rating (Amps): 3.4A per Contact, Connector Type: Header, Features: Keying Slot, Packaging: Tube.
Інші пропозиції HTST-107-01-T-DV за ціною від 61.17 грн до 154.78 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HTST-107-01-T-DV | Samtec |
Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip |
на замовлення 1235 шт: термін постачання 21-30 дні (днів) |
|
| HTST-107-01-T-DV |
|
Виробник: Samtec
Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip
Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip
на замовлення 1235 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 154.78 грн |
| 110+ | 106.00 грн |
| 506+ | 81.70 грн |
| 1012+ | 63.05 грн |
| 2002+ | 61.17 грн |
