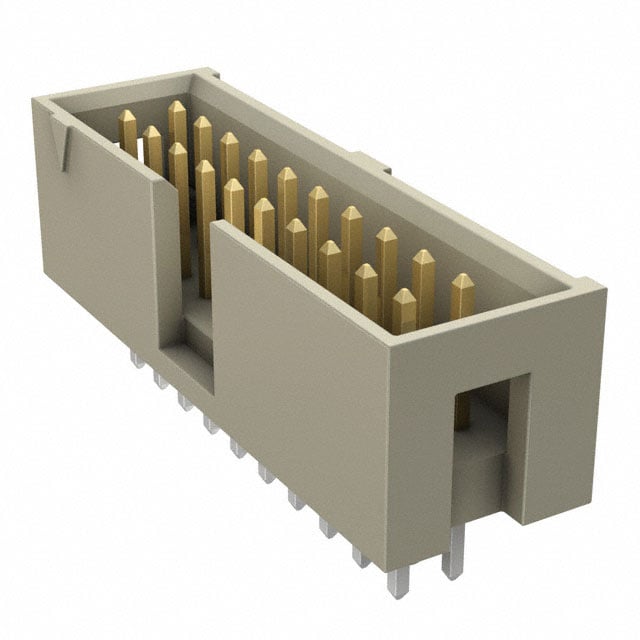

HTST-110-01-L-D Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Bulk
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.115" (2.92mm)
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.480" (12.19mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
на замовлення 1993 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 171.91 грн |
| 10+ | 140.37 грн |
| 100+ | 119.30 грн |
| 500+ | 99.94 грн |
| 1000+ | 95.17 грн |
Відгуки про товар
Написати відгук
Технічний опис HTST-110-01-L-D Samtec Inc.
Description: CONN HEADER VERT 20POS 2.54MM, Packaging: Bulk, Features: Keying Slot, Connector Type: Header, Current Rating (Amps): 3.4A per Contact, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.115" (2.92mm), Insulation Height: 0.350" (8.89mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.480" (12.19mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).
Інші пропозиції HTST-110-01-L-D за ціною від 101.59 грн до 285.73 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HTST-110-01-L-D | Виробник : Samtec |
Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip, Cable Mate |
на замовлення 1449 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
HTST-110-01-L-D | Виробник : SAMTEC |
Description: SAMTEC - HTST-110-01-L-D - Stiftleiste, Wire-to-Board, 2.54 mm, 2 Reihe(n), 20 Kontakt(e), Durchsteckmontage, HTST tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 20Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: HTST productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (21-Jan-2025) |
на замовлення 106 шт: термін постачання 21-31 дні (днів) |
|
