Продукція > SAMTEC INC. > HTSW-107-07-T-D

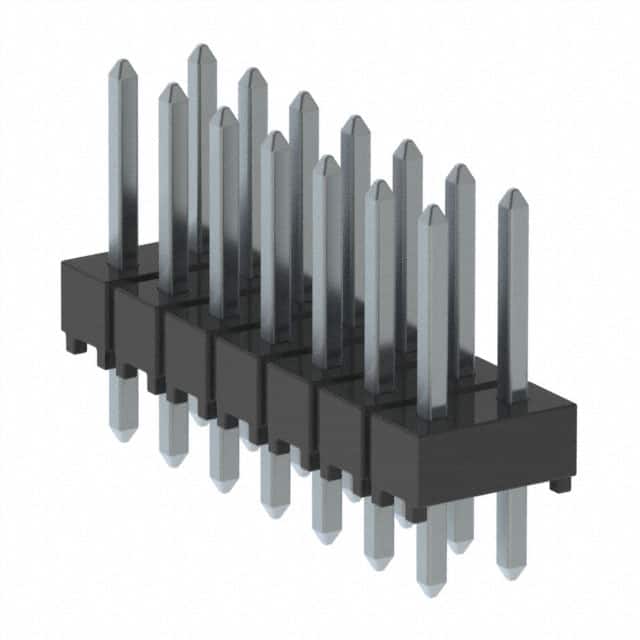

HTSW-107-07-T-D

HTSW-107-07-T-D Samtec Inc.

htsw_th.pdf Виробник: Samtec Inc.
Description: CONN HEADER VERT 14POS 2.54MM
Packaging: Bag
Connector Type: Header
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.100" (2.54mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 4727 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна без ПДВ
6+53.31 грн
10+ 43.22 грн
100+ 38.84 грн
500+ 29.82 грн
1000+ 26.51 грн
Мінімальне замовлення: 6
Відгуки про товар
Написати відгук

Технічний опис HTSW-107-07-T-D Samtec Inc.

Description: CONN HEADER VERT 14POS 2.54MM, Packaging: Bag, Connector Type: Header, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.100" (2.54mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.430" (10.92mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).
