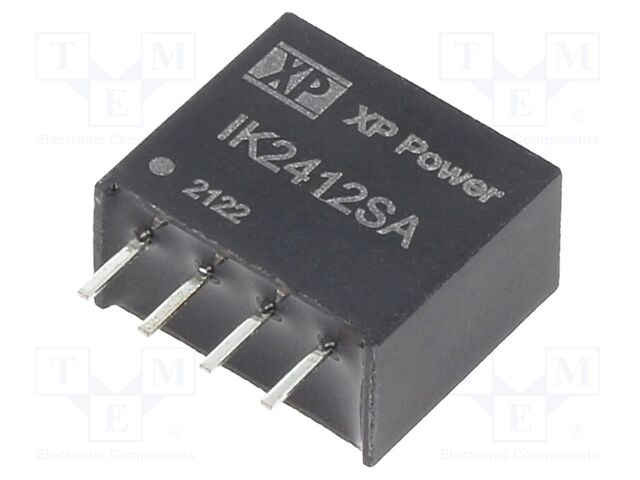

IK2412SA XP POWER
Виробник: XP POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 250mW; Uin: 24VDC; Uout: 12VDC; Iout: 20.83mA; SIP
Type of converter: DC/DC
Power: 0.25W
Input voltage: 24V DC
Output voltage: 12V DC
Output current: 20.83mA
Case: SIP
Mounting: THT
Manufacturer series: IK
Body dimensions: 11.68x9.65x6mm
Efficiency: 56%
Operating temperature: -40...85°C
Switching frequency: 80kHz
Insulation voltage: 1kV DC
Number of outputs: 1
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 391.98 грн |
| 5+ | 324.19 грн |
Відгуки про товар
Написати відгук
Технічний опис IK2412SA XP POWER
Description: DC DC CONVERTER 12V 250MW, Voltage - Output 1: 12V, Voltage - Input (Min): 21.6V, Current - Output (Max): 20.8mA, Efficiency: 56%, Voltage - Input (Max): 26.4V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 85°C, Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm), Package / Case: 4-SIP Module, Packaging: Tube, Voltage - Isolation: 1 kV, Number of Outputs: 1, Power (Watts): 250 mW.
