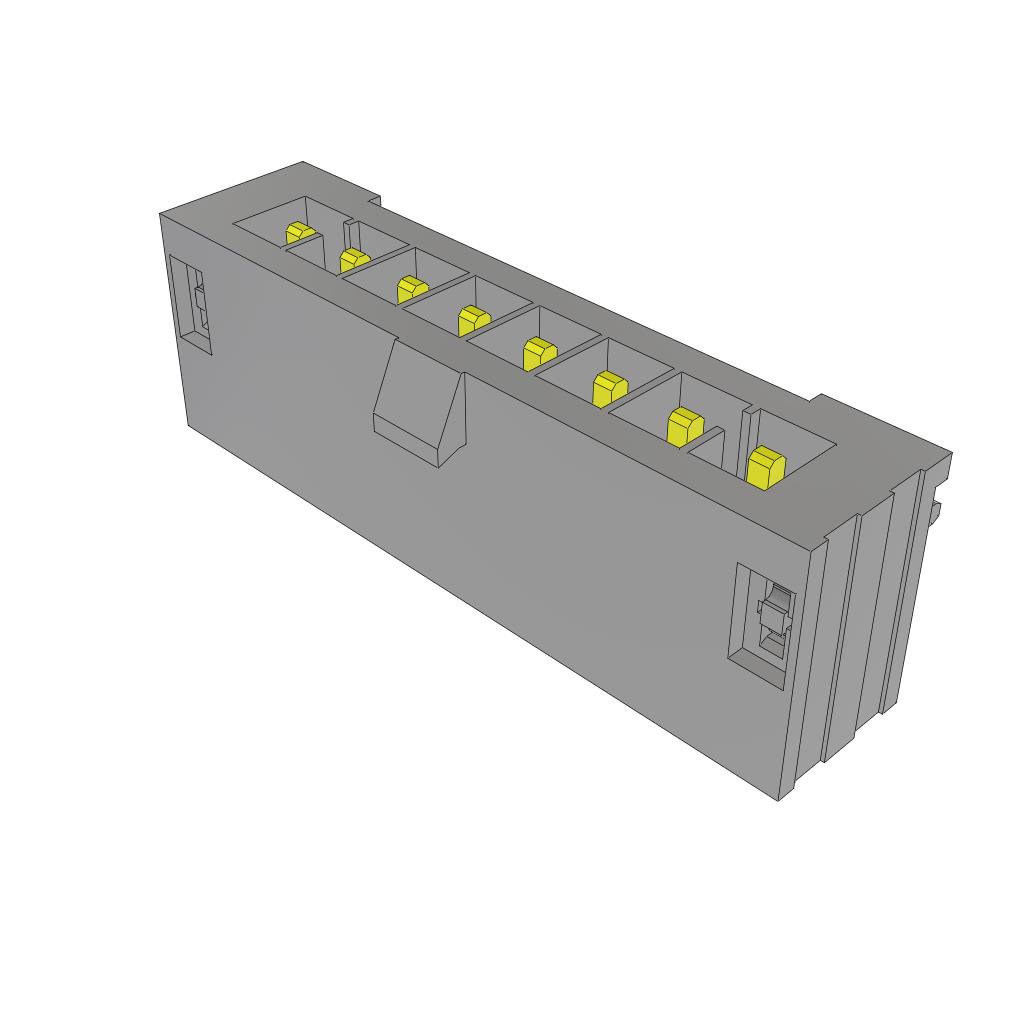

IPL1-108-02-L-SH-K Samtec Inc.

Description: CONN HEADER SMD R/A 8POS 2.54MM, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Natural, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Locking Ramp, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 8, Mounting Type: Surface Mount, Right Angle, Voltage Rating: 675VAC, 954VDC, Connector Type: Header, Features: Board Guide, Packaging: Tube, Contact Length - Mating: 0.215" (5.46mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.220" (5.60mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold.
