IRL40DM247XTMA1 Infineon Technologies

Виробник: Infineon Technologies
Description: TRENCH <= 40V
Packaging: Cut Tape (CT)

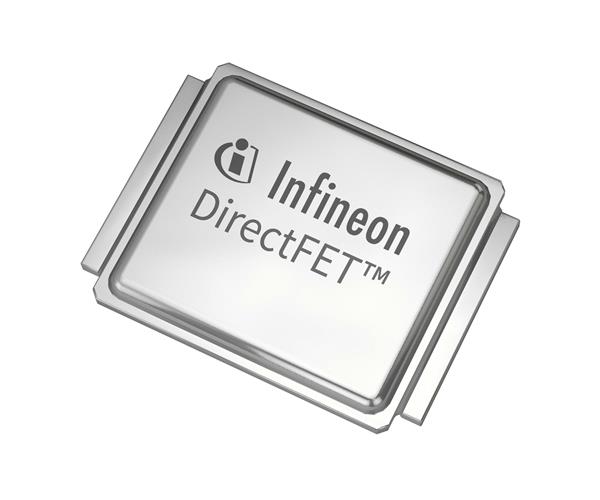

Package / Case: DirectFET™ Isometric ME
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 44A (Ta), 211A (Tc)
Rds On (Max) @ Id, Vgs: 0.82mOhm @ 50A, 10V
Power Dissipation (Max): 2.8W (Ta), 63W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA
Supplier Device Package: MG-WDSON-8-904
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 165 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 8400 pF @ 20 V
