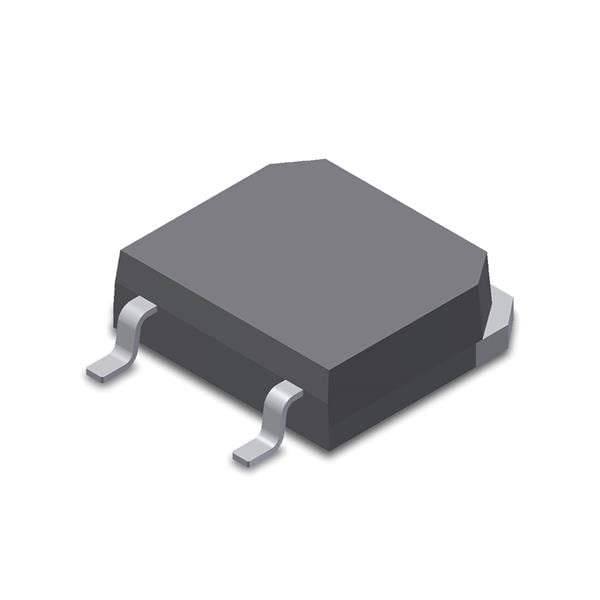

IXTT34N65X2HV Littelfuse Inc.
Виробник: Littelfuse Inc.
Description: MOSFET N-CH 650V 34A TO268HV
Input Capacitance (Ciss) (Max) @ Vds: 3000 pF @ 25 V
Gate Charge (Qg) (Max) @ Vgs: 54 nC @ 10 V
Drain to Source Voltage (Vdss): 650 V
Vgs (Max): ±30V
Drive Voltage (Max Rds On, Min Rds On): 10V
Part Status: Active
Supplier Device Package: TO-268HV (IXTT)
Vgs(th) (Max) @ Id: 5V @ 250µA
Power Dissipation (Max): 540W (Tc)
Rds On (Max) @ Id, Vgs: 96mOhm @ 17A, 10V
Current - Continuous Drain (Id) @ 25°C: 34A (Tc)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: TO-268-3, D3PAK (2 Leads + Tab), TO-268AA
Packaging: Tube
Відгуки про товар
Написати відгук
Технічний опис IXTT34N65X2HV Littelfuse Inc.
Description: MOSFET N-CH 650V 34A TO268HV, Input Capacitance (Ciss) (Max) @ Vds: 3000 pF @ 25 V, Gate Charge (Qg) (Max) @ Vgs: 54 nC @ 10 V, Drain to Source Voltage (Vdss): 650 V, Vgs (Max): ±30V, Drive Voltage (Max Rds On, Min Rds On): 10V, Part Status: Active, Supplier Device Package: TO-268HV (IXTT), Vgs(th) (Max) @ Id: 5V @ 250µA, Power Dissipation (Max): 540W (Tc), Rds On (Max) @ Id, Vgs: 96mOhm @ 17A, 10V, Current - Continuous Drain (Id) @ 25°C: 34A (Tc), FET Type: N-Channel, Technology: MOSFET (Metal Oxide), Operating Temperature: -55°C ~ 150°C (TJ), Mounting Type: Surface Mount, Package / Case: TO-268-3, D3PAK (2 Leads + Tab), TO-268AA, Packaging: Tube.
Інші пропозиції IXTT34N65X2HV
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
IXTT34N65X2HV | Виробник : IXYS |
MOSFETs TO268 650V 34A N-CH X4CLASS |
товару немає в наявності |
