IXTU12N06T IXYS

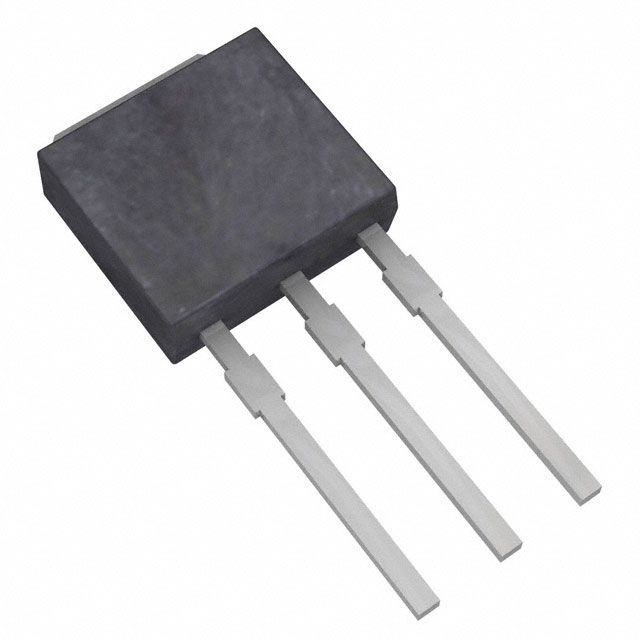

Description: MOSFET N-CH 60V 12A TO251, Packaging: Tube, Package / Case: TO-251-3 Short Leads, IPak, TO-251AA, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 12A (Tc), Rds On (Max) @ Id, Vgs: 85mOhm @ 6A, 10V, Power Dissipation (Max): 33W (Tc), Vgs(th) (Max) @ Id: 4V @ 25µA, Supplier Device Package: TO-251AA, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 60 V, Gate Charge (Qg) (Max) @ Vgs: 3.4 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 256 pF @ 25 V.
