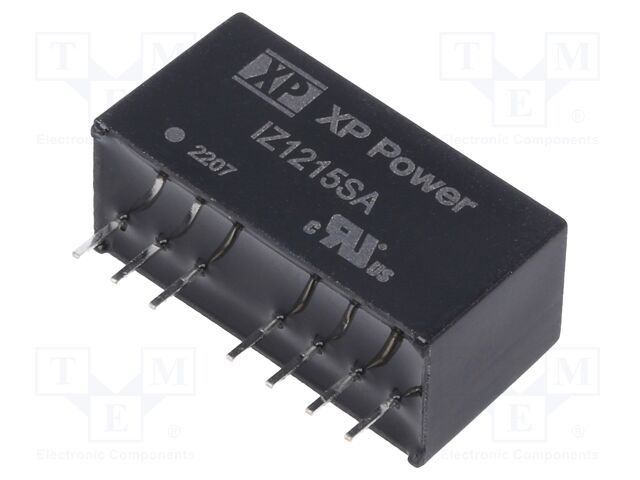

IZ1215SA XP POWER
Виробник: XP POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷18VDC; Uout: 15VDC; Iout: 200mA; SIP; THT
Type of converter: DC/DC
Power: 3W
Input voltage: 9...18V DC
Output voltage: 15V DC
Output current: 0.2A
Case: SIP
Mounting: THT
Manufacturer series: IZ
Body dimensions: 21.85x10.6x11.1mm
Efficiency: 84%
Operating temperature: -40...100°C
Switching frequency: 650kHz
Insulation voltage: 1.6kV DC
Number of outputs: 1
Відгуки про товар
Написати відгук
Технічний опис IZ1215SA XP POWER
Description: DC DC CONVERTER 15V 3W, Standard Number: 62368-1, Voltage - Isolation: 1.6 kV, Number of Outputs: 1, Power (Watts): 3 W, Control Features: Enable, Active Low, Voltage - Output 1: 15V, Voltage - Input (Min): 9V, Current - Output (Max): 200mA, Efficiency: 84%, Voltage - Input (Max): 18V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 100°C, Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm), Package / Case: 8-SIP Module, 7 Leads, Features: Remote On/Off, SCP, Packaging: Tube.
