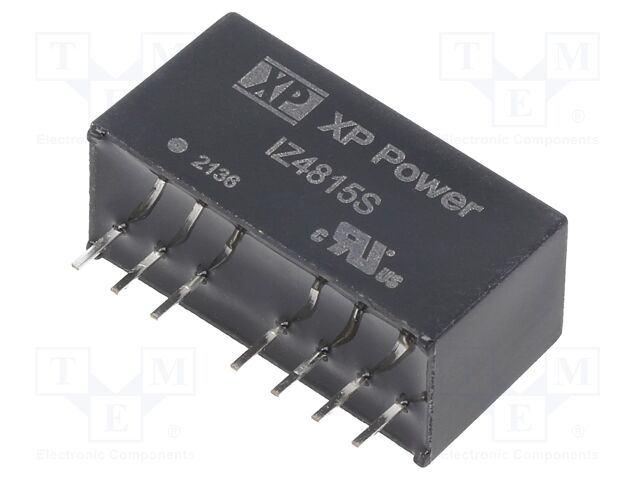

IZ4815S XP POWER
Виробник: XP POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 36÷72VDC; Uout: 15VDC; Uout2: -15VDC; SIP
Type of converter: DC/DC
Power: 3W
Input voltage: 36...72V DC
Output voltage: 15V DC
Output current: 0.1A
Case: SIP
Mounting: THT
Manufacturer series: IZ
Body dimensions: 21.85x10.6x11.1mm
Efficiency: 81%
Operating temperature: -40...100°C
Switching frequency: 650kHz
Insulation voltage: 1.6kV DC
Number of outputs: 2
Output current 2: 0.1A
Output voltage 2: -15V DC
Відгуки про товар
Написати відгук
Технічний опис IZ4815S XP POWER
Description: DC DC CONVERTER +/-15V 3W, Voltage - Output 2: -15V, Voltage - Output 1: 15V, Voltage - Input (Min): 36V, Current - Output (Max): 100mA, Efficiency: 81%, Voltage - Input (Max): 72V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 100°C, Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm), Package / Case: 8-SIP Module, 7 Leads, Features: Remote On/Off, SCP, Packaging: Tube, Standard Number: 62368-1, Voltage - Isolation: 1.6 kV, Number of Outputs: 2, Power (Watts): 3 W, Control Features: Enable, Active Low.
Інші пропозиції IZ4815S за ціною від 836.77 грн до 1162.37 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IZ4815S | Виробник : XP Power |
Isolated DC/DC Converters - Through Hole DC DC CONVERTER, 3WATT, REGULATED |
на замовлення 10 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
IZ4815S | Виробник : XP Power |
Description: DC DC CONVERTER +/-15V 3W Voltage - Output 2: -15V Voltage - Output 1: 15V Voltage - Input (Min): 36V Current - Output (Max): 100mA Efficiency: 81% Voltage - Input (Max): 72V Applications: ITE (Commercial) Operating Temperature: -40°C ~ 100°C Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) Package / Case: 8-SIP Module, 7 Leads Features: Remote On/Off, SCP Packaging: Tube Standard Number: 62368-1 Voltage - Isolation: 1.6 kV Number of Outputs: 2 Power (Watts): 3 W Control Features: Enable, Active Low |
товару немає в наявності |
