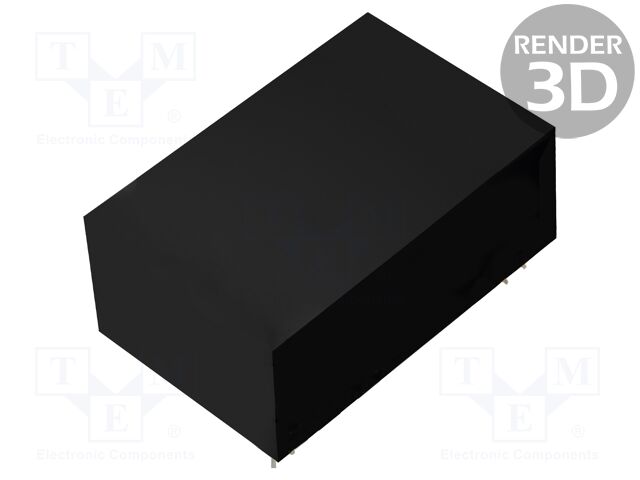

JMR1012D15 XP POWER
Виробник: XP POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 10W; Uin: 4.5÷18VDC; Uout: 15VDC; Uout2: -15VDC
Operating temperature: -40...100°C
Mounting: THT
Type of converter: DC/DC
Case: DIP24
Manufacturer series: JMR
Output voltage 2: -15V DC
Body dimensions: 31.8x20.3x10.2mm
Output current: 0.333A
Output current 2: 333mA
Number of outputs: 2
Output voltage: 15V DC
Input voltage: 4.5...18V DC
Power: 10W
Efficiency: 87%
Insulation voltage: 5kV DC
Switching frequency: 300kHz
Відгуки про товар
Написати відгук
Технічний опис JMR1012D15 XP POWER
Description: 10W PCB DIP24 4.5-18VDC INPUT 4:, Efficiency: 87%, Approval Agency: CB, CE, CSA, TUV, UKCA, UL, Voltage - Input (Max): 18V, Applications: ITE (Commercial), Medical, Operating Temperature: -40°C ~ 100°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm), Package / Case: 24-DIP Module, 8 Leads, Features: Adjustable Output, Remote On/Off, Packaging: Tube, Standard Number: 60601-1; 62368-1, Voltage - Isolation: 5 kV, Number of Outputs: 2, Power (Watts): 10 W, Voltage - Output 2: -15V, Voltage - Output 1: 15V, Voltage - Input (Min): 4.5V, Current - Output (Max): 333mA, 333mA.
Інші пропозиції JMR1012D15 за ціною від 3632.93 грн до 5575.70 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JMR1012D15 | Виробник : XP Power |
Description: 10W PCB DIP24 4.5-18VDC INPUT 4: Efficiency: 87% Approval Agency: CB, CE, CSA, TUV, UKCA, UL Voltage - Input (Max): 18V Applications: ITE (Commercial), Medical Operating Temperature: -40°C ~ 100°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) Package / Case: 24-DIP Module, 8 Leads Features: Adjustable Output, Remote On/Off Packaging: Tube Standard Number: 60601-1; 62368-1 Voltage - Isolation: 5 kV Number of Outputs: 2 Power (Watts): 10 W Voltage - Output 2: -15V Voltage - Output 1: 15V Voltage - Input (Min): 4.5V Current - Output (Max): 333mA, 333mA |
на замовлення 39 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
JMR1012D15 | Виробник : XP Power |
DC/DC Converters - Through Hole 10W PCB DIP24 4.5-18VDC input 4:1 medical DC-DC converter, dual output 15VDC 333mA |
на замовлення 40 шт: термін постачання 21-30 дні (днів) |
|
