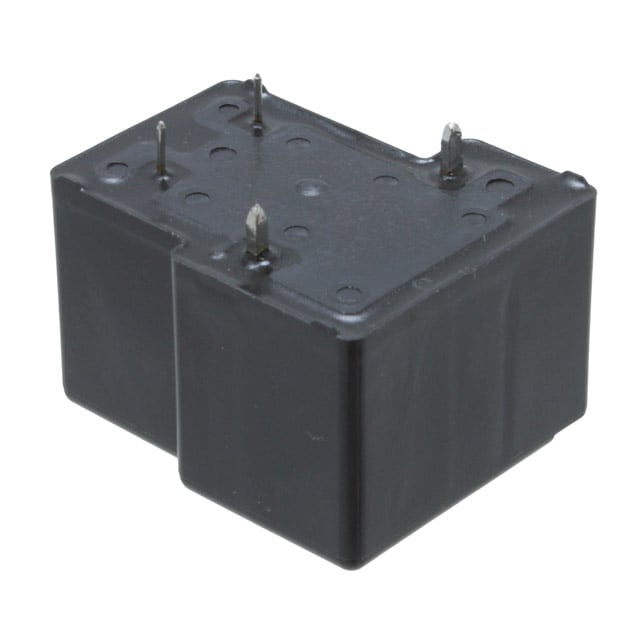

JTN1AS-PA-F-DC5V

Виробник: Panasonic Electric Works
Description: RELAY GEN PURPOSE SPST 30A 5V
Packaging: Bulk
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -55°C ~ 85°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 160 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Tin Oxide (AgSnO)
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 30 A
Switching Voltage: 277VAC - Max
Must Release Voltage: 0.5 VDC
Must Operate Voltage: 3.75 VDC
Operate Time: 20 ms
Release Time: 10 ms
Part Status: Obsolete
Coil Insulation: Class F
Approval Agency: CSA, UR
Load - Max Switching: 8310VA

Виробник: Panasonic Industrial Devices
General Purpose Relays 30A 5VDC SPST SEALED CLASS F PCB

Виробник: PANASONIC
Description: PANASONIC - JTN1AS-PA-F-DC5V - RELAY, SPST-NO, 277VAC, 28VDC, 30A
Zulassungen & Normen: -
Relaisanschlüsse: Solder
Spulentyp: Non Latching
Kontaktmaterial: Silver Tin Oxide
Kontaktstrom: 30
Spulenwiderstand: 31
Kontaktspannung V DC: 28
Relaismontage: Through Hole
Produktpalette: JV-N Series
Spulenspannung: 5
Kontaktkonfiguration: SPST-NO
Kontaktspannung V AC: 277
SVHC: No SVHC (07-Jul-2017)

Виробник: Panasonic
Power Relay 5VDC 30A SPST-NO(31.9mm 26.9mm 20.2mm) THT Automotive
