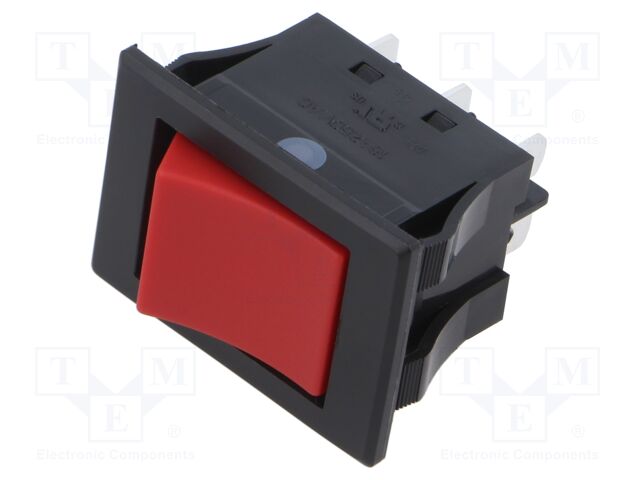

JWLW22RCA NKK Switches


JW.pdf
Виробник: NKK Switches
Description: SWITCH ROCKER DPDT 16A 125V
Features: Epoxy Sealed Terminals
Packaging: Bulk
Current Rating (Amps): 16A (AC)
Mounting Type: Panel Mount, Snap-In
Circuit: DPDT
Switch Function: On-On
Operating Temperature: -25°C ~ 85°C
Termination Style: Solder, Quick Connect - 0.187" (4.7mm)
Actuator Type: Concave (Curved)
Approval Agency: CSA, UL, VDE
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Rectangular - 30.70mm x 20.50mm
Color - Actuator/Cap: Red
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 125 V
на замовлення 25 шт:
термін постачання 21-31 дні (днів)
КількістьЦіна без ПДВ
1+1565.38 грн
10+1301.07 грн
25+1226.65 грн
В кошику  од. на суму  грн.
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання: 21-31 дні (днів)
Відгуки про товар
Написати відгук

Технічний опис JWLW22RCA NKK Switches

Category: Rocker Switches, Description: ROCKER; DPDT; Pos: 2; ON-ON; 16A/250VAC; 5A/72VDC; red; IP67; JW; 10N, Mounting: on panel; SNAP-IN, Contact material: silver alloy, Mounting hole dimensions: 20.5x30.7mm, Manufacturer series: JW, Poles number: 2, Button shape: rectangular, Type of switch: ROCKER, Mechanical durability: 25000 cycles, DC contacts rating @R: 5A / 72V DC, Body colour: black, AC contacts rating @R: 16A / 250V AC, Shape: rectangular, Operating temperature: -25...85°C, Key button colour: red, Contacts configuration: DPDT, Stable positions number: 2, Number of terminals: 6, Leads: connectors; for soldering, Operating Force: 10N, Body material: melamine; polyamide, Body dimensions: 27x37.3x24mm, Switching method: ON-ON, Min. insulation resistance: 1GΩ, Max. contact resistance:: 20mΩ, Leads dimensions: 4.75x0.8mm, Electrical life: 25000 cycles, Conform to the norm: UL, Illumination: none, Number of positions: 2, IP rating: IP67, Contact plating: silver plated.

Інші пропозиції JWLW22RCA

Фото Назва Виробник Інформація Доступність Ціна без ПДВ
JWLW22RCA JWLW22RCA NKK SWITCHES JWL11RBA.pdf Category: Rocker Switches
Description: ROCKER; DPDT; Pos: 2; ON-ON; 16A/250VAC; 5A/72VDC; red; IP67; JW; 10N
Mounting: on panel; SNAP-IN
Contact material: silver alloy
Mounting hole dimensions: 20.5x30.7mm
Manufacturer series: JW
Poles number: 2
Button shape: rectangular
Type of switch: ROCKER
Mechanical durability: 25000 cycles
DC contacts rating @R: 5A / 72V DC
Body colour: black
AC contacts rating @R: 16A / 250V AC
Shape: rectangular
Operating temperature: -25...85°C
Key button colour: red
Contacts configuration: DPDT
Stable positions number: 2
Number of terminals: 6
Leads: connectors; for soldering
Operating Force: 10N
Body material: melamine; polyamide
Body dimensions: 27x37.3x24mm
Switching method: ON-ON
Min. insulation resistance: 1GΩ
Max. contact resistance:: 20mΩ
Leads dimensions: 4.75x0.8mm
Electrical life: 25000 cycles
Conform to the norm: UL
Illumination: none
Number of positions: 2
IP rating: IP67
Contact plating: silver plated
