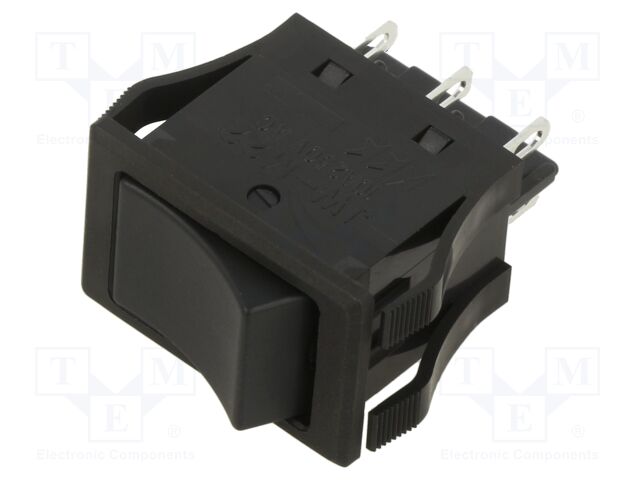

JWM22RAA NKK SWITCHES
Виробник: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; DPDT; Pos: 2; ON-ON; 10A/250VAC; 10A/30VDC; black; JW; 7.84N
Type of switch: ROCKER
Contacts configuration: DPDT
Number of positions: 2
Stable positions number: 2
Switching method: ON-ON
AC contacts rating @R: 10A / 250V AC
Key button colour: black
Illumination: none
Max. contact resistance:: 10mΩ
Body colour: black
Leads: connectors; for soldering
Leads dimensions: 2.8x0.5mm
Electrical life: 25000 cycles
Mounting hole diameter: 15.4x24mm
Button shape: rectangular
Operating temperature: -25...70°C
Number of terminals: 6
Mechanical durability: 25000 cycles
Min. insulation resistance: 1GΩ
Manufacturer series: JW
Contact material: silver alloy
Conform to the norm: CSA; UL
Contact plating: silver plated
Body material: melamine; polyamide
Mounting: on panel; SNAP-IN
Shape: rectangular
Body dimensions: 18x27x21.5mm
DC contacts rating @R: 10A / 30V DC
Operating Force: 7.84N
Poles number: 2
Відгуки про товар
Написати відгук
Технічний опис JWM22RAA NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; DPDT; Pos: 2; ON-ON; 10A/250VAC; 10A/30VDC; black; JW; 7.84N, Type of switch: ROCKER, Contacts configuration: DPDT, Number of positions: 2, Stable positions number: 2, Switching method: ON-ON, AC contacts rating @R: 10A / 250V AC, Key button colour: black, Illumination: none, Max. contact resistance:: 10mΩ, Body colour: black, Leads: connectors; for soldering, Leads dimensions: 2.8x0.5mm, Electrical life: 25000 cycles, Mounting hole diameter: 15.4x24mm, Button shape: rectangular, Operating temperature: -25...70°C, Number of terminals: 6, Mechanical durability: 25000 cycles, Min. insulation resistance: 1GΩ, Manufacturer series: JW, Contact material: silver alloy, Conform to the norm: CSA; UL, Contact plating: silver plated, Body material: melamine; polyamide, Mounting: on panel; SNAP-IN, Shape: rectangular, Body dimensions: 18x27x21.5mm, DC contacts rating @R: 10A / 30V DC, Operating Force: 7.84N, Poles number: 2.
Інші пропозиції JWM22RAA за ціною від 586.73 грн до 824.05 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JWM22RAA | NKK Switches |
Rocker Switches 10A DPDT ON ON BLK |
на замовлення 1618 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
 |
JWM22RAA | NKK Switches |
Description: SWITCH ROCKER DPDT 10A 125V Termination Style: Solder, Quick Connect - 0.110" (2.8mm) Operating Temperature: -25°C ~ 70°C Switch Function: On-On Circuit: DPDT Mounting Type: Panel Mount, Snap-In Current Rating (Amps): 10A (AC) Features: Epoxy Sealed Terminals Packaging: Bulk Voltage Rating - AC: 125 V Actuator Marking: No Marking Color - Actuator/Cap: Black Panel Cutout Dimensions: Rectangular - 24.00mm x 15.40mm Ingress Protection: Dust Proof Actuator Type: Concave (Curved) |
на замовлення 130 шт: термін постачання 21-31 дні (днів) |
|
| JWM22RAA |
|
Виробник: NKK Switches
Rocker Switches 10A DPDT ON ON BLK
Rocker Switches 10A DPDT ON ON BLK
на замовлення 1618 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 669.65 грн |
| JWM22RAA |
|
Виробник: NKK Switches
Description: SWITCH ROCKER DPDT 10A 125V
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Operating Temperature: -25°C ~ 70°C
Switch Function: On-On
Circuit: DPDT
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 10A (AC)
Features: Epoxy Sealed Terminals
Packaging: Bulk
Voltage Rating - AC: 125 V
Actuator Marking: No Marking
Color - Actuator/Cap: Black
Panel Cutout Dimensions: Rectangular - 24.00mm x 15.40mm
Ingress Protection: Dust Proof
Actuator Type: Concave (Curved)
Description: SWITCH ROCKER DPDT 10A 125V
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Operating Temperature: -25°C ~ 70°C
Switch Function: On-On
Circuit: DPDT
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 10A (AC)
Features: Epoxy Sealed Terminals
Packaging: Bulk
Voltage Rating - AC: 125 V
Actuator Marking: No Marking
Color - Actuator/Cap: Black
Panel Cutout Dimensions: Rectangular - 24.00mm x 15.40mm
Ingress Protection: Dust Proof
Actuator Type: Concave (Curved)
на замовлення 130 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 824.05 грн |
| 10+ | 715.09 грн |
| 25+ | 685.12 грн |
| 50+ | 611.32 грн |
| 100+ | 586.73 грн |
