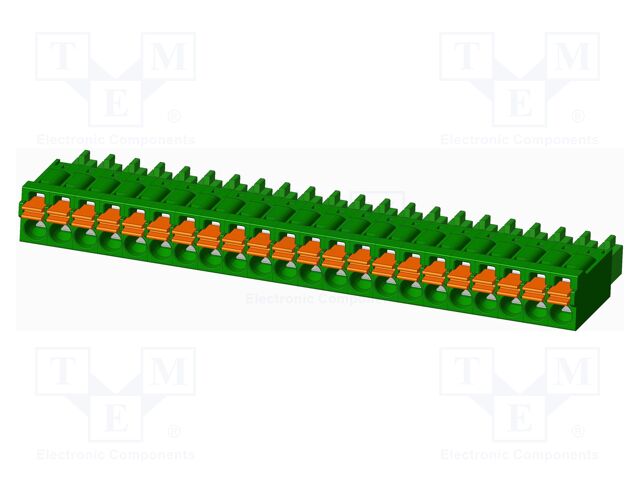

KD2210500000G AMPHENOL ANYTEK


Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 5.5A; 160V
Type of connector: pluggable terminal block
Current rating: 5.5A
Rated voltage: 160V
Connector: plug
Number of pins: 22
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: phosphor bronze
Contact plating: tinned
Body material: thermoplastic
Contacts pitch: 3.5mm
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Wire size: 24AWG...16AWG
Spatial orientation: straight
Kind of connector: female
Locking system: friction lock
Colour: green
Connector pinout layout: 1x22
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис KD2210500000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 5.5A; 160V, Type of connector: pluggable terminal block, Current rating: 5.5A, Rated voltage: 160V, Connector: plug, Number of pins: 22, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact material: phosphor bronze, Contact plating: tinned, Body material: thermoplastic, Contacts pitch: 3.5mm, Flammability rating: UL94V-0, Operating temperature: -40...115°C, Wire size: 24AWG...16AWG, Spatial orientation: straight, Kind of connector: female, Locking system: friction lock, Colour: green, Connector pinout layout: 1x22, кількість в упаковці: 1 шт.
Інші пропозиції KD2210500000G
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
---|---|---|---|---|---|
KD2210500000G | Виробник : Amphenol Anytek |
![]() Packaging: Bulk Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 22 Pitch: 0.138" (3.50mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screwless - Leg Spring, Push-In Spring Number of Levels: 1 Wire Gauge or Range - AWG: 16-24 AWG Positions Per Level: 22 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 5.5 A Voltage - UL: 160 V |
товару немає в наявності |
||
KD2210500000G | Виробник : Amphenol Anytek |
![]() |
товару немає в наявності |
||
![]() |
KD2210500000G | Виробник : AMPHENOL ANYTEK |
![]() ![]() Description: Connector: pluggable terminal block; plug; female; 5.5A; 160V Type of connector: pluggable terminal block Current rating: 5.5A Rated voltage: 160V Connector: plug Number of pins: 22 Mechanical mounting: for cable Electrical mounting: spring clamp Contact material: phosphor bronze Contact plating: tinned Body material: thermoplastic Contacts pitch: 3.5mm Flammability rating: UL94V-0 Operating temperature: -40...115°C Wire size: 24AWG...16AWG Spatial orientation: straight Kind of connector: female Locking system: friction lock Colour: green Connector pinout layout: 1x22 |
товару немає в наявності |
