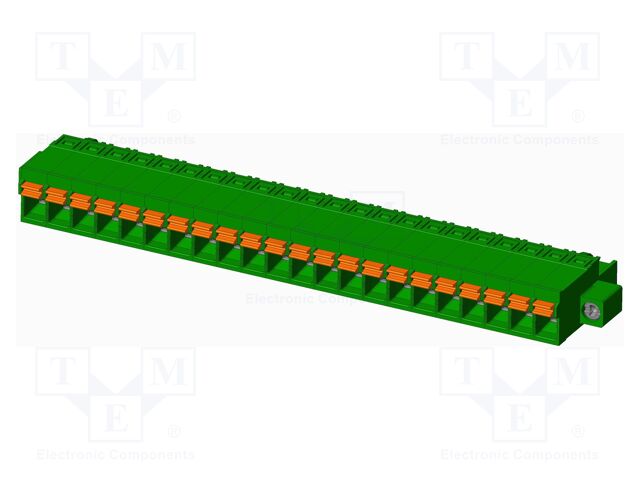

KD2270510000G

KD2270510000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89309D2A0C0D6&compId=KD5.01.pdf?ci_sign=9b783e12857000a3eac6f094cdb3345bfc51291c pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADB15298580DC&compId=KD.pdf?ci_sign=22a562ca0681864e793a95c3e7a95c003a205e30 Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22
Electrical mounting: spring clamp
Mechanical mounting: for cable
Current rating: 12A
Flammability rating: UL94V-0
Body material: thermoplastic
Number of pins: 22
Contact material: phosphor bronze
Connector pinout layout: 1x22
Contacts pitch: 5mm
Wire size: 24AWG...14AWG
Locking system: friction lock; threaded joint
Spatial orientation: straight
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...115°C
кількість в упаковці: 1 шт
товару немає в наявності

В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис KD2270510000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22, Electrical mounting: spring clamp, Mechanical mounting: for cable, Current rating: 12A, Flammability rating: UL94V-0, Body material: thermoplastic, Number of pins: 22, Contact material: phosphor bronze, Connector pinout layout: 1x22, Contacts pitch: 5mm, Wire size: 24AWG...14AWG, Locking system: friction lock; threaded joint, Spatial orientation: straight, Colour: green, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, Rated voltage: 300V, Operating temperature: -40...115°C, кількість в упаковці: 1 шт.

Інші пропозиції KD2270510000G

Фото Назва Виробник Інформація Доступність
Ціна
KD2270510000G Виробник : Amphenol Anytek kAGw8Qe6wtKq.pdf Description: TERM BLOCK PLUG 22POS STR 5MM
Features: Mating Flange, Retention Latches (Wire Side)
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 22
Pitch: 0.197" (5.00mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screwless - Leg Spring, Push-In Spring
Number of Levels: 1
Wire Gauge or Range - AWG: 14-24 AWG
Positions Per Level: 22
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 12 A
Voltage - UL: 300 V
товару немає в наявності
В кошику  од. на суму  грн.
KD2270510000G Виробник : Amphenol Anytek wvGmf0rEm66n-1379240.pdf Pluggable Terminal Blocks TB SPRING PLUG WF
товару немає в наявності
В кошику  од. на суму  грн.
KD2270510000G KD2270510000G Виробник : AMPHENOL ANYTEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89309D2A0C0D6&compId=KD5.01.pdf?ci_sign=9b783e12857000a3eac6f094cdb3345bfc51291c pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADB15298580DC&compId=KD.pdf?ci_sign=22a562ca0681864e793a95c3e7a95c003a205e30 Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22
Electrical mounting: spring clamp
Mechanical mounting: for cable
Current rating: 12A
Flammability rating: UL94V-0
Body material: thermoplastic
Number of pins: 22
Contact material: phosphor bronze
Connector pinout layout: 1x22
Contacts pitch: 5mm
Wire size: 24AWG...14AWG
Locking system: friction lock; threaded joint
Spatial orientation: straight
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...115°C
товару немає в наявності
В кошику  од. на суму  грн.
