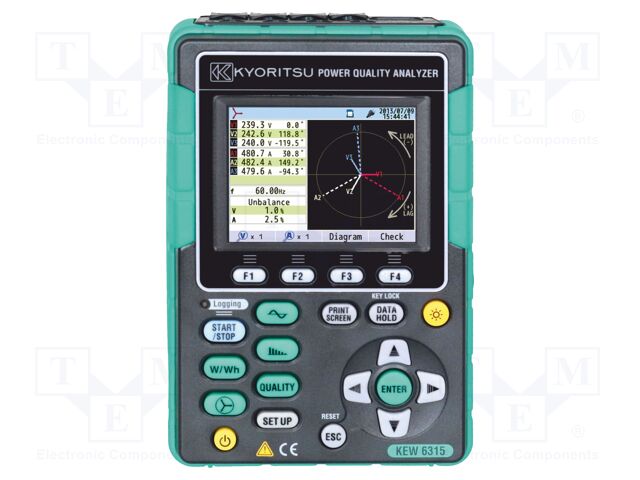

KEW6315-04 KYORITSU
Виробник: KYORITSUCategory: Power Quality Analyzers
Description: Meter: power quality analyser; LCD 3,5"; Resolution: 320x240
Type of meter: power quality analyser
Kind of display used: LCD 3,5"
Kind of network: 3-wire; 4-wire; single-phase; three-phase
Display resolution: 320x240
Measurement: AC current; active electric energy; active power; AC voltage; apparent electric energy; apparent power; flicker; frequency; harmonics; inrush current; neutral conductor current; power factor; reactive electric energy; reactive power
AC voltage measuring range: 600V; 1kV
True effective value measurement: True RMS
Frequency measuring range: 40...70Hz
Interface: Bluetooth; USB
Measuring instrument features: MIN/MAX/AVG function; vector charts
Standard equipment: 2GB SD memory card; case KEW9135; input terminal plate x6; KEW7141B test leads; KEW8130 - current clamp x4; mains cable; USB cable; user's manual
Power supply: battery LR6 AA 1,5V x6
Body dimensions: 120x68x175mm
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Software: dedicated mobile app
Supply voltage: 100...240V AC
Memory capacity: 4Mb
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис KEW6315-04 KYORITSU
Category: Power Quality Analyzers, Description: Meter: power quality analyser; LCD 3,5"; Resolution: 320x240, Type of meter: power quality analyser, Kind of display used: LCD 3,5", Kind of network: 3-wire; 4-wire; single-phase; three-phase, Display resolution: 320x240, Measurement: AC current; active electric energy; active power; AC voltage; apparent electric energy; apparent power; flicker; frequency; harmonics; inrush current; neutral conductor current; power factor; reactive electric energy; reactive power, AC voltage measuring range: 600V; 1kV, True effective value measurement: True RMS, Frequency measuring range: 40...70Hz, Interface: Bluetooth; USB, Measuring instrument features: MIN/MAX/AVG function; vector charts, Standard equipment: 2GB SD memory card; case KEW9135; input terminal plate x6; KEW7141B test leads; KEW8130 - current clamp x4; mains cable; USB cable; user's manual, Power supply: battery LR6 AA 1,5V x6, Body dimensions: 120x68x175mm, Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010, Battery/ rechargeable battery: battery LR6 AA 1,5V x6, Software: dedicated mobile app, Supply voltage: 100...240V AC, Memory capacity: 4Mb, кількість в упаковці: 1 шт.
