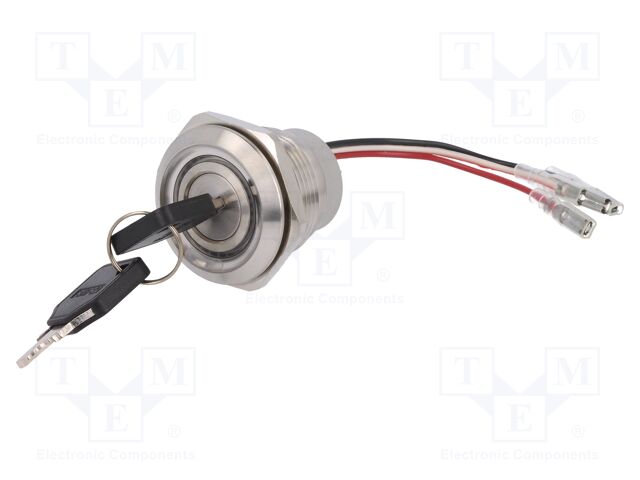

LAS1-AGQ30-11Y/21/RG/12V ONPOW
Виробник: ONPOWCategory: Key Switches and Locks
Description: Switch: key switch; Stabl.pos: 2; Switch.method: ON-ON; Ø30mm; 90°
Type of switch: key switch
Stable positions number: 2
Switching method: ON-ON
Contacts configuration: SPDT
Switches features: the key can be removed at any position
Number of positions: 2
Mounting hole diameter: Ø30mm
Key shape: flat
Kind of wrench: symmetrical
Body material: stainless steel
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Electrical life: 50000 cycles
Ring shape: rounded
Operating temperature: -20...55°C
Max. contact resistance:: 50mΩ
Number of terminals: 5
Illumination voltage: 12V
Mechanical rotation angle: 90°
Test voltage: 1.5kV
Mechanical durability: 200000 cycles
Contact material: silver alloy
Body colour: silver
Leads: for soldering
IP rating: IP40
Illumination: LED; ring
Backlight colour: red/green
на замовлення 7 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 2011.12 грн |
| 5+ | 1773.38 грн |
Відгуки про товар
Написати відгук
Технічний опис LAS1-AGQ30-11Y/21/RG/12V ONPOW
Category: Key Switches and Locks, Description: Switch: key switch; Stabl.pos: 2; Switch.method: ON-ON; Ø30mm; 90°, Type of switch: key switch, Stable positions number: 2, Switching method: ON-ON, Contacts configuration: SPDT, Switches features: the key can be removed at any position, Number of positions: 2, Mounting hole diameter: Ø30mm, Key shape: flat, Kind of wrench: symmetrical, Body material: stainless steel, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Electrical life: 50000 cycles, Ring shape: rounded, Operating temperature: -20...55°C, Max. contact resistance:: 50mΩ, Number of terminals: 5, Illumination voltage: 12V, Mechanical rotation angle: 90°, Test voltage: 1.5kV, Mechanical durability: 200000 cycles, Contact material: silver alloy, Body colour: silver, Leads: for soldering, IP rating: IP40, Illumination: LED; ring, Backlight colour: red/green, кількість в упаковці: 1 шт.
