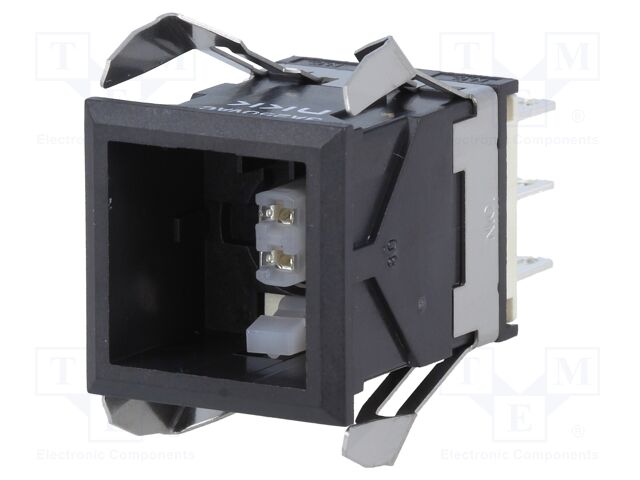

LB15SKW01 NKK SWITCHES
Виробник: NKK SWITCHESCategory: Standard Switches
Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON)
Operating temperature: -25...50°C
Body dimensions: 13.2x17.8x21.5mm
Leads dimensions: 2.8x0.5mm
IP rating: IP65
Leads: connectors; for soldering
Electrical life: 100000 cycles
Conform to the norm: CSA; UL
Type of switch: push-button
Contacts configuration: SPDT
AC contacts rating @R: 3A / 250V AC
DC contacts rating @R: 3A / 30V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 4.41N
Key stroke: 3mm
Button shape: square
Manufacturer series: LB Snap-in
Number of positions: 2
Kind of material: fiber glass reinforced
Mounting: on panel; SNAP-IN
Mechanical durability: 1000000 cycles
Max. contact resistance:: 50mΩ
Min. insulation resistance: 200MΩ
на замовлення 49 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 677.06 грн |
| 4+ | 608.17 грн |
Відгуки про товар
Написати відгук
Технічний опис LB15SKW01 NKK SWITCHES
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON), Operating temperature: -25...50°C, Body dimensions: 13.2x17.8x21.5mm, Leads dimensions: 2.8x0.5mm, IP rating: IP65, Leads: connectors; for soldering, Electrical life: 100000 cycles, Conform to the norm: CSA; UL, Type of switch: push-button, Contacts configuration: SPDT, AC contacts rating @R: 3A / 250V AC, DC contacts rating @R: 3A / 30V DC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 4.41N, Key stroke: 3mm, Button shape: square, Manufacturer series: LB Snap-in, Number of positions: 2, Kind of material: fiber glass reinforced, Mounting: on panel; SNAP-IN, Mechanical durability: 1000000 cycles, Max. contact resistance:: 50mΩ, Min. insulation resistance: 200MΩ, кількість в упаковці: 1 шт.
Інші пропозиції LB15SKW01 за ціною від 613.39 грн до 1020.33 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LB15SKW01 | Виробник : NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON) Operating temperature: -25...50°C Body dimensions: 13.2x17.8x21.5mm Leads dimensions: 2.8x0.5mm IP rating: IP65 Leads: connectors; for soldering Electrical life: 100000 cycles Conform to the norm: CSA; UL Type of switch: push-button Contacts configuration: SPDT AC contacts rating @R: 3A / 250V AC DC contacts rating @R: 3A / 30V DC Switching method: ON-(ON) Stable positions number: 1 Operating Force: 4.41N Key stroke: 3mm Button shape: square Manufacturer series: LB Snap-in Number of positions: 2 Kind of material: fiber glass reinforced Mounting: on panel; SNAP-IN Mechanical durability: 1000000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 200MΩ кількість в упаковці: 1 шт |
на замовлення 49 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||
 |
LB15SKW01 | Виробник : NKK Switches |
Pushbutton Switches SPDT On-(On) SQUARE |
на замовлення 9 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
 |
LB15SKW01 | Виробник : NKK Switches |
Description: SWITCH PUSHBUTTON SPDT 3A 125V Packaging: Bulk Current Rating (Amps): 3A (AC/DC) Mounting Type: Panel Mount, Snap-In Circuit: SPDT Type: Standard Switch Function: On-Mom Operating Temperature: -25°C ~ 70°C Termination Style: Solder, Quick Connect - 0.110" (2.8mm) Actuator Type: Plunger for Cap Panel Cutout Dimensions: Square - 16.20mm x 16.20mm Actuator Marking: No Marking Part Status: Active Voltage Rating - AC: 125 V Voltage Rating - DC: 30 V |
на замовлення 909 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
| LB15SKW01 | Виробник : NKK Switches |
Switch Push Button ON (ON) SPDT Square Button 3A 250VAC 30VDC Momentary Contact Panel Mount Quick Connect/Solder Lug |
товару немає в наявності |
