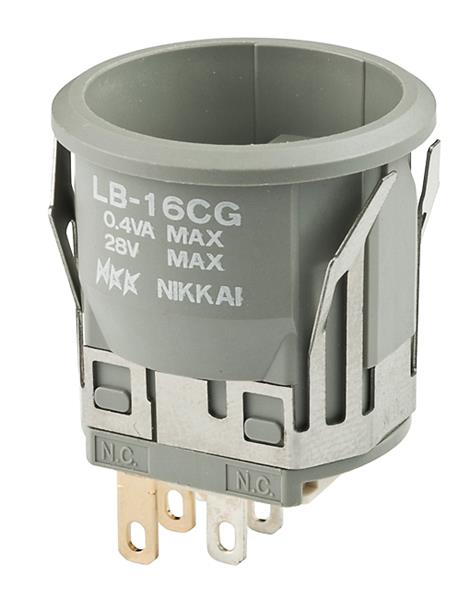

LB16CGG01 NKK Switches
Виробник: NKK Switches
Description: SWITCH PUSH SPDT 0.4VA 28V
Packaging: Bulk
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Panel Mount, Snap-In
Circuit: SPDT
Type: Standard
Switch Function: On-On
Operating Temperature: -25°C ~ 70°C
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Actuator Type: Plunger for Cap
Panel Cutout Dimensions: Circular - 22.00mm Dia
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1157.67 грн |
| 10+ | 962.03 грн |
| 25+ | 907.08 грн |
| 50+ | 814.13 грн |
| 100+ | 778.55 грн |
| 250+ | 733.81 грн |
| 500+ | 690.10 грн |
Відгуки про товар
Написати відгук
Технічний опис LB16CGG01 NKK Switches
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON, Mounting: on panel; SNAP-IN, Contact material: phosphor bronze, Manufacturer series: LB Snap-in, Type of switch: push-button, Mechanical durability: 200000 cycles, DC contacts rating @R: 0.1A / 28V DC, Body colour: grey, AC contacts rating @R: 0.1A / 28V AC, Operating temperature: -25...70°C, Button shape: round, Contacts configuration: SPDT, Stable positions number: 1, Number of terminals: 6, Leads: connectors; for soldering, Operating Force: 4.41N, Body material: polyamide, Key stroke: 3mm, Body dimensions: Ø23.7x23.3mm, Switching method: ON-ON, Min. insulation resistance: 200MΩ, Kind of material: fiber glass reinforced, Max. contact resistance:: 100mΩ, Leads dimensions: 2.8x0.5mm, Electrical life: 100000 cycles, Conform to the norm: CSA; UL, Illumination: none, Number of positions: 2, Contact plating: gold-plated.
Інші пропозиції LB16CGG01
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
LB16CGG01 | NKK Switches |
Pushbutton Switches - Board Mount SPDT ON-ON GRAY ROUND BODY ONLY |
товару немає в наявності |
В кошику од. на суму грн. |
| LB16CGG01 | NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON Mounting: on panel; SNAP-IN Contact material: phosphor bronze Manufacturer series: LB Snap-in Type of switch: push-button Mechanical durability: 200000 cycles DC contacts rating @R: 0.1A / 28V DC Body colour: grey AC contacts rating @R: 0.1A / 28V AC Operating temperature: -25...70°C Button shape: round Contacts configuration: SPDT Stable positions number: 1 Number of terminals: 6 Leads: connectors; for soldering Operating Force: 4.41N Body material: polyamide Key stroke: 3mm Body dimensions: Ø23.7x23.3mm Switching method: ON-ON Min. insulation resistance: 200MΩ Kind of material: fiber glass reinforced Max. contact resistance:: 100mΩ Leads dimensions: 2.8x0.5mm Electrical life: 100000 cycles Conform to the norm: CSA; UL Illumination: none Number of positions: 2 Contact plating: gold-plated |
товару немає в наявності |
В кошику од. на суму грн. |
| LB16CGG01 |
|
Виробник: NKK Switches
Pushbutton Switches - Board Mount SPDT ON-ON GRAY ROUND BODY ONLY
Pushbutton Switches - Board Mount SPDT ON-ON GRAY ROUND BODY ONLY
товару немає в наявності
В кошику
од. на суму грн.
| LB16CGG01 |
|
Виробник: NKK SWITCHES
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON
Mounting: on panel; SNAP-IN
Contact material: phosphor bronze
Manufacturer series: LB Snap-in
Type of switch: push-button
Mechanical durability: 200000 cycles
DC contacts rating @R: 0.1A / 28V DC
Body colour: grey
AC contacts rating @R: 0.1A / 28V AC
Operating temperature: -25...70°C
Button shape: round
Contacts configuration: SPDT
Stable positions number: 1
Number of terminals: 6
Leads: connectors; for soldering
Operating Force: 4.41N
Body material: polyamide
Key stroke: 3mm
Body dimensions: Ø23.7x23.3mm
Switching method: ON-ON
Min. insulation resistance: 200MΩ
Kind of material: fiber glass reinforced
Max. contact resistance:: 100mΩ
Leads dimensions: 2.8x0.5mm
Electrical life: 100000 cycles
Conform to the norm: CSA; UL
Illumination: none
Number of positions: 2
Contact plating: gold-plated
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON
Mounting: on panel; SNAP-IN
Contact material: phosphor bronze
Manufacturer series: LB Snap-in
Type of switch: push-button
Mechanical durability: 200000 cycles
DC contacts rating @R: 0.1A / 28V DC
Body colour: grey
AC contacts rating @R: 0.1A / 28V AC
Operating temperature: -25...70°C
Button shape: round
Contacts configuration: SPDT
Stable positions number: 1
Number of terminals: 6
Leads: connectors; for soldering
Operating Force: 4.41N
Body material: polyamide
Key stroke: 3mm
Body dimensions: Ø23.7x23.3mm
Switching method: ON-ON
Min. insulation resistance: 200MΩ
Kind of material: fiber glass reinforced
Max. contact resistance:: 100mΩ
Leads dimensions: 2.8x0.5mm
Electrical life: 100000 cycles
Conform to the norm: CSA; UL
Illumination: none
Number of positions: 2
Contact plating: gold-plated
