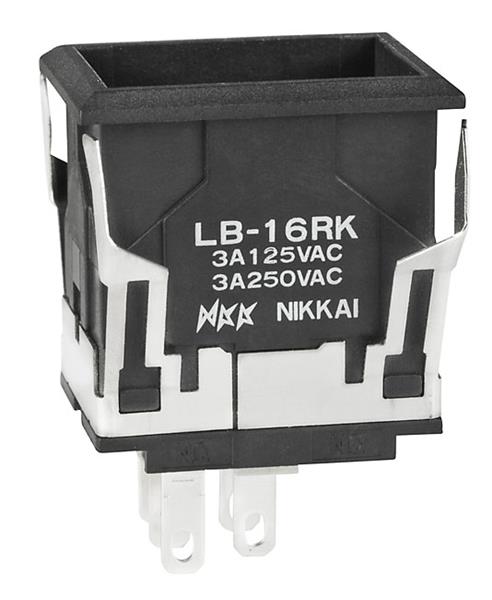

LB16RKW01 NKK Switches
Виробник: NKK SwitchesDescription: SWITCH PUSHBUTTON SPDT 3A 125V
Packaging: Bulk
Current Rating (Amps): 3A (AC/DC)
Mounting Type: Panel Mount, Snap-In
Circuit: SPDT
Type: Standard
Switch Function: On-On
Operating Temperature: -25°C ~ 70°C
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Actuator Type: Plunger for Cap
Panel Cutout Dimensions: Rectangular - 22.40mm x 16.20mm
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
на замовлення 135 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 962.55 грн |
| 10+ | 837.20 грн |
| 25+ | 796.89 грн |
| 50+ | 710.06 грн |
| 100+ | 684.85 грн |
Відгуки про товар
Написати відгук
Технічний опис LB16RKW01 NKK Switches
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-ON; 200MΩ, Mounting: on panel; SNAP-IN, Body dimensions: 17.8x24x24.3mm, Leads dimensions: 2.8x0.5mm, Operating temperature: -25...70°C, Leads: connectors; for soldering, Number of terminals: 6, Electrical life: 100000 cycles, Body material: polyamide, Contact material: phosphor bronze, Conform to the norm: CSA; UL, Min. insulation resistance: 200MΩ, Type of switch: push-button, Contacts configuration: SPDT, AC contacts rating @R: 3A / 250V AC, DC contacts rating @R: 3A / 30V DC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 4.41N, Illumination: none, Body colour: black, Key stroke: 3mm, Button shape: rectangular, Max. contact resistance:: 50mΩ, Mechanical durability: 200000 cycles, Manufacturer series: LB Snap-in, Number of positions: 2, Kind of material: fiber glass reinforced, Contact plating: silver plated, кількість в упаковці: 1 шт.
Інші пропозиції LB16RKW01
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| LB16RKW01 | Виробник : NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-ON; 200MΩ Mounting: on panel; SNAP-IN Body dimensions: 17.8x24x24.3mm Leads dimensions: 2.8x0.5mm Operating temperature: -25...70°C Leads: connectors; for soldering Number of terminals: 6 Electrical life: 100000 cycles Body material: polyamide Contact material: phosphor bronze Conform to the norm: CSA; UL Min. insulation resistance: 200MΩ Type of switch: push-button Contacts configuration: SPDT AC contacts rating @R: 3A / 250V AC DC contacts rating @R: 3A / 30V DC Switching method: ON-ON Stable positions number: 2 Operating Force: 4.41N Illumination: none Body colour: black Key stroke: 3mm Button shape: rectangular Max. contact resistance:: 50mΩ Mechanical durability: 200000 cycles Manufacturer series: LB Snap-in Number of positions: 2 Kind of material: fiber glass reinforced Contact plating: silver plated кількість в упаковці: 1 шт |
товару немає в наявності |
||
 |
LB16RKW01 | Виробник : NKK Switches |
Pushbutton Switches SPDT On-On RECTANG |
товару немає в наявності |
|
| LB16RKW01 | Виробник : NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-ON; 200MΩ Mounting: on panel; SNAP-IN Body dimensions: 17.8x24x24.3mm Leads dimensions: 2.8x0.5mm Operating temperature: -25...70°C Leads: connectors; for soldering Number of terminals: 6 Electrical life: 100000 cycles Body material: polyamide Contact material: phosphor bronze Conform to the norm: CSA; UL Min. insulation resistance: 200MΩ Type of switch: push-button Contacts configuration: SPDT AC contacts rating @R: 3A / 250V AC DC contacts rating @R: 3A / 30V DC Switching method: ON-ON Stable positions number: 2 Operating Force: 4.41N Illumination: none Body colour: black Key stroke: 3mm Button shape: rectangular Max. contact resistance:: 50mΩ Mechanical durability: 200000 cycles Manufacturer series: LB Snap-in Number of positions: 2 Kind of material: fiber glass reinforced Contact plating: silver plated |
товару немає в наявності |
