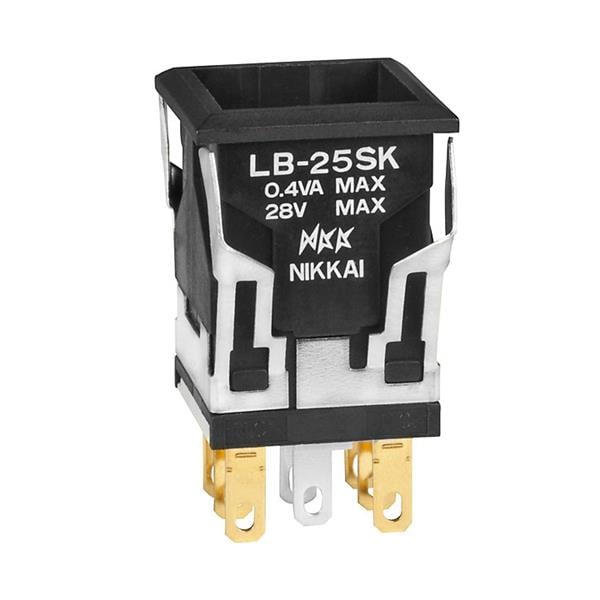

LB25SKW01 NKK Switches


lbsnapinnonilluminated.pdf
Виробник: NKK Switches
Description: SWITCH PUSHBUTTON DPDT 3A 125V
на замовлення 124 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис LB25SKW01 NKK Switches

Category: Standard Switches, Description: Switch: push-button; Pos: 2; DPDT; 3A/250VAC; 3A/30VDC; ON-(ON), Operating temperature: -25...70°C, Contact material: phosphor bronze, Contact plating: silver plated, Manufacturer series: LB Snap-in, Illumination: none, Switching method: ON-(ON), Mounting: on panel; SNAP-IN, Body material: polyamide, Type of switch: push-button, Button shape: square, Leads dimensions: 2.8x0.5mm, Key stroke: 3mm, Mounting hole dimensions: 16.2x16.2mm, Body dimensions: 17.8x17.8x23.3mm, Max. contact resistance:: 50mΩ, AC contacts rating @R: 3A / 250V AC, DC contacts rating @R: 3A / 30V DC, Stable positions number: 1, Number of positions: 2, Number of terminals: 3, Operating Force: 4.41N, Electrical life: 100000 cycles, Mechanical durability: 1000000 cycles, Min. insulation resistance: 200MΩ, Body colour: black, Leads: connectors; for soldering, Conform to the norm: CSA; UL, Contacts configuration: DPDT, Kind of material: fiber glass reinforced.

Інші пропозиції LB25SKW01

Фото Назва Виробник Інформація Доступність Ціна без ПДВ
LB25SKW01 NKK SWITCHES LB15CGG01.pdf Category: Standard Switches
Description: Switch: push-button; Pos: 2; DPDT; 3A/250VAC; 3A/30VDC; ON-(ON)
Operating temperature: -25...70°C
Contact material: phosphor bronze
Contact plating: silver plated
Manufacturer series: LB Snap-in
Illumination: none
Switching method: ON-(ON)
Mounting: on panel; SNAP-IN
Body material: polyamide
Type of switch: push-button
Button shape: square
Leads dimensions: 2.8x0.5mm
Key stroke: 3mm
Mounting hole dimensions: 16.2x16.2mm
Body dimensions: 17.8x17.8x23.3mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 3A / 250V AC
DC contacts rating @R: 3A / 30V DC
Stable positions number: 1
Number of positions: 2
Number of terminals: 3
Operating Force: 4.41N
Electrical life: 100000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 200MΩ
Body colour: black
Leads: connectors; for soldering
Conform to the norm: CSA; UL
Contacts configuration: DPDT
Kind of material: fiber glass reinforced
