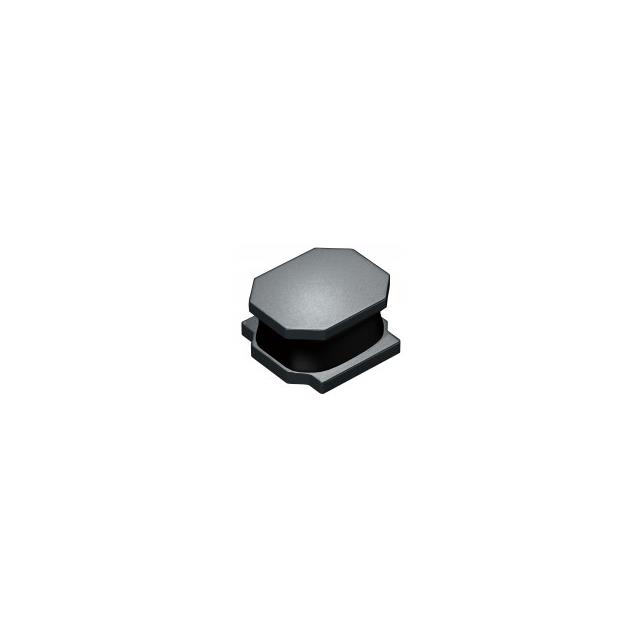

LCXND5050WDL100MMG Taiyo Yuden
Виробник: Taiyo Yuden
Description: FIXED IND 10UH 1.2A 150 MOHM SMD
Current Rating (Amps): 1.2 A
Inductance: 10 µH
Height - Seated (Max): 0.094" (2.40mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Ferrite
Current - Saturation (Isat): 1.7A
Ratings: AEC-Q200
Frequency - Self Resonant: 21MHz
DC Resistance (DCR): 125mOhm
Operating Temperature: -40°C ~ 125°C
Type: Wirewound
Shielding: Unshielded
Mounting Type: Surface Mount
Size / Dimension: 0.193" L x 0.193" W (4.90mm x 4.90mm)
Package / Case: Nonstandard
Tolerance: ±20%
Packaging: Tape & Reel (TR)
| Кількість | Ціна |
|---|---|
| 2500+ | 14.50 грн |
Відгуки про товар
Написати відгук
Технічний опис LCXND5050WDL100MMG Taiyo Yuden
Description: FIXED IND 10UH 1.2A 150 MOHM SMD, Current Rating (Amps): 1.2 A, Inductance: 10 µH, Height - Seated (Max): 0.094" (2.40mm), Inductance Frequency - Test: 100 kHz, Material - Core: Ferrite, Current - Saturation (Isat): 1.7A, Ratings: AEC-Q200, Frequency - Self Resonant: 21MHz, DC Resistance (DCR): 125mOhm, Operating Temperature: -40°C ~ 125°C, Type: Wirewound, Shielding: Unshielded, Mounting Type: Surface Mount, Size / Dimension: 0.193" L x 0.193" W (4.90mm x 4.90mm), Package / Case: Nonstandard, Tolerance: ±20%, Packaging: Tape & Reel (TR).
Інші пропозиції LCXND5050WDL100MMG за ціною від 13.30 грн до 32.44 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LCXND5050WDL100MMG | Taiyo Yuden |
Description: FIXED IND 10UH 1.2A 150 MOHM SMD Current Rating (Amps): 1.2 A Inductance: 10 µH Height - Seated (Max): 0.094" (2.40mm) Inductance Frequency - Test: 100 kHz Material - Core: Ferrite Current - Saturation (Isat): 1.7A Ratings: AEC-Q200 Frequency - Self Resonant: 21MHz DC Resistance (DCR): 125mOhm Operating Temperature: -40°C ~ 125°C Type: Wirewound Shielding: Unshielded Mounting Type: Surface Mount Size / Dimension: 0.193" L x 0.193" W (4.90mm x 4.90mm) Package / Case: Nonstandard Tolerance: ±20% Packaging: Cut Tape (CT) |
на замовлення 2500 шт: термін постачання 21-31 дні (днів) |
|
| LCXND5050WDL100MMG |
|
Виробник: Taiyo Yuden
Description: FIXED IND 10UH 1.2A 150 MOHM SMD
Current Rating (Amps): 1.2 A
Inductance: 10 µH
Height - Seated (Max): 0.094" (2.40mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Ferrite
Current - Saturation (Isat): 1.7A
Ratings: AEC-Q200
Frequency - Self Resonant: 21MHz
DC Resistance (DCR): 125mOhm
Operating Temperature: -40°C ~ 125°C
Type: Wirewound
Shielding: Unshielded
Mounting Type: Surface Mount
Size / Dimension: 0.193" L x 0.193" W (4.90mm x 4.90mm)
Package / Case: Nonstandard
Tolerance: ±20%
Packaging: Cut Tape (CT)
Description: FIXED IND 10UH 1.2A 150 MOHM SMD
Current Rating (Amps): 1.2 A
Inductance: 10 µH
Height - Seated (Max): 0.094" (2.40mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Ferrite
Current - Saturation (Isat): 1.7A
Ratings: AEC-Q200
Frequency - Self Resonant: 21MHz
DC Resistance (DCR): 125mOhm
Operating Temperature: -40°C ~ 125°C
Type: Wirewound
Shielding: Unshielded
Mounting Type: Surface Mount
Size / Dimension: 0.193" L x 0.193" W (4.90mm x 4.90mm)
Package / Case: Nonstandard
Tolerance: ±20%
Packaging: Cut Tape (CT)
на замовлення 2500 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 10+ | 32.44 грн |
| 12+ | 27.05 грн |
| 25+ | 24.78 грн |
| 50+ | 21.13 грн |
| 100+ | 18.81 грн |
| 250+ | 17.75 грн |
| 500+ | 14.97 грн |
| 1000+ | 13.30 грн |
